ABICOR BINZEL ABIMIG® W T
Description
Technical specification

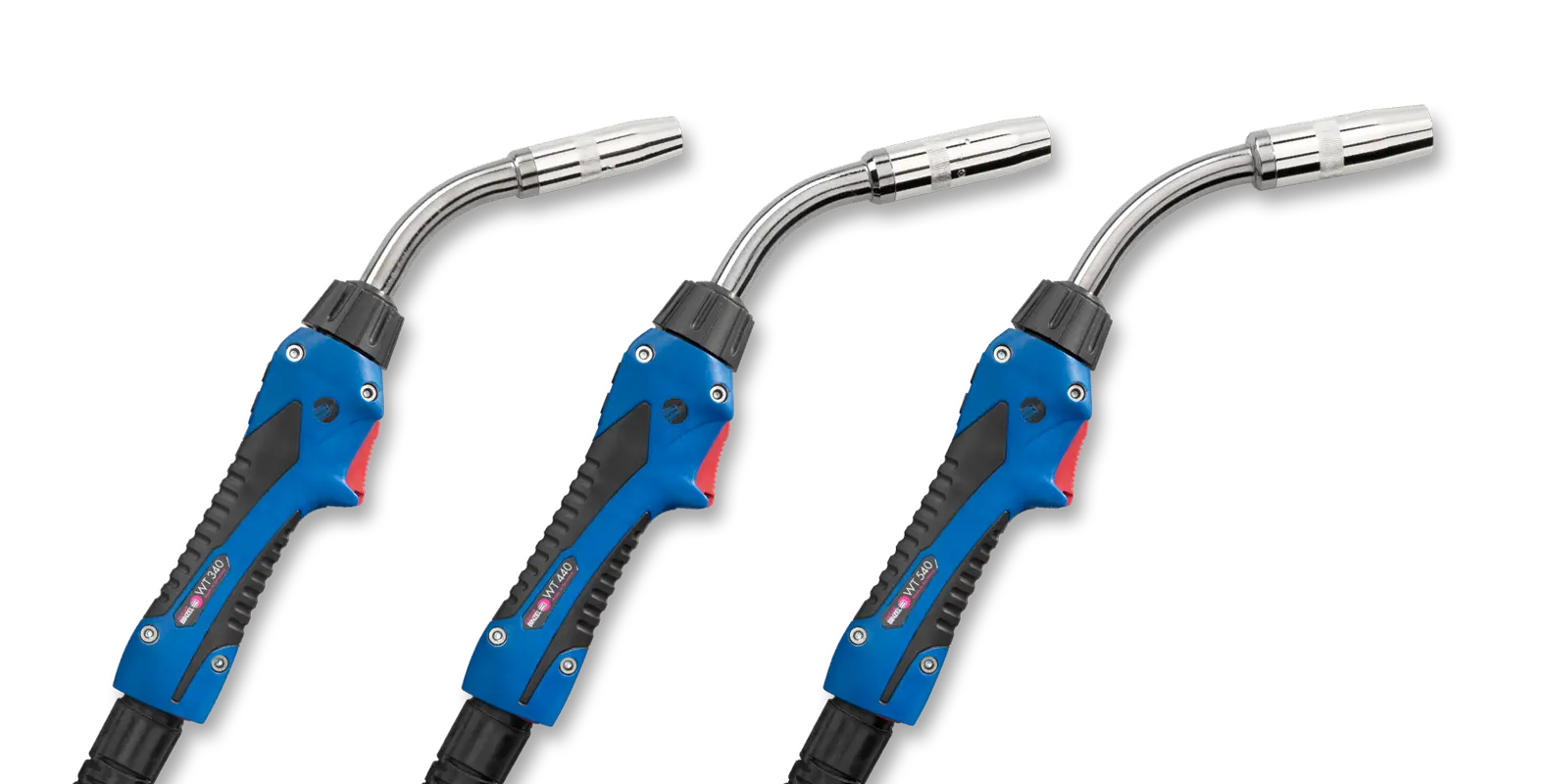

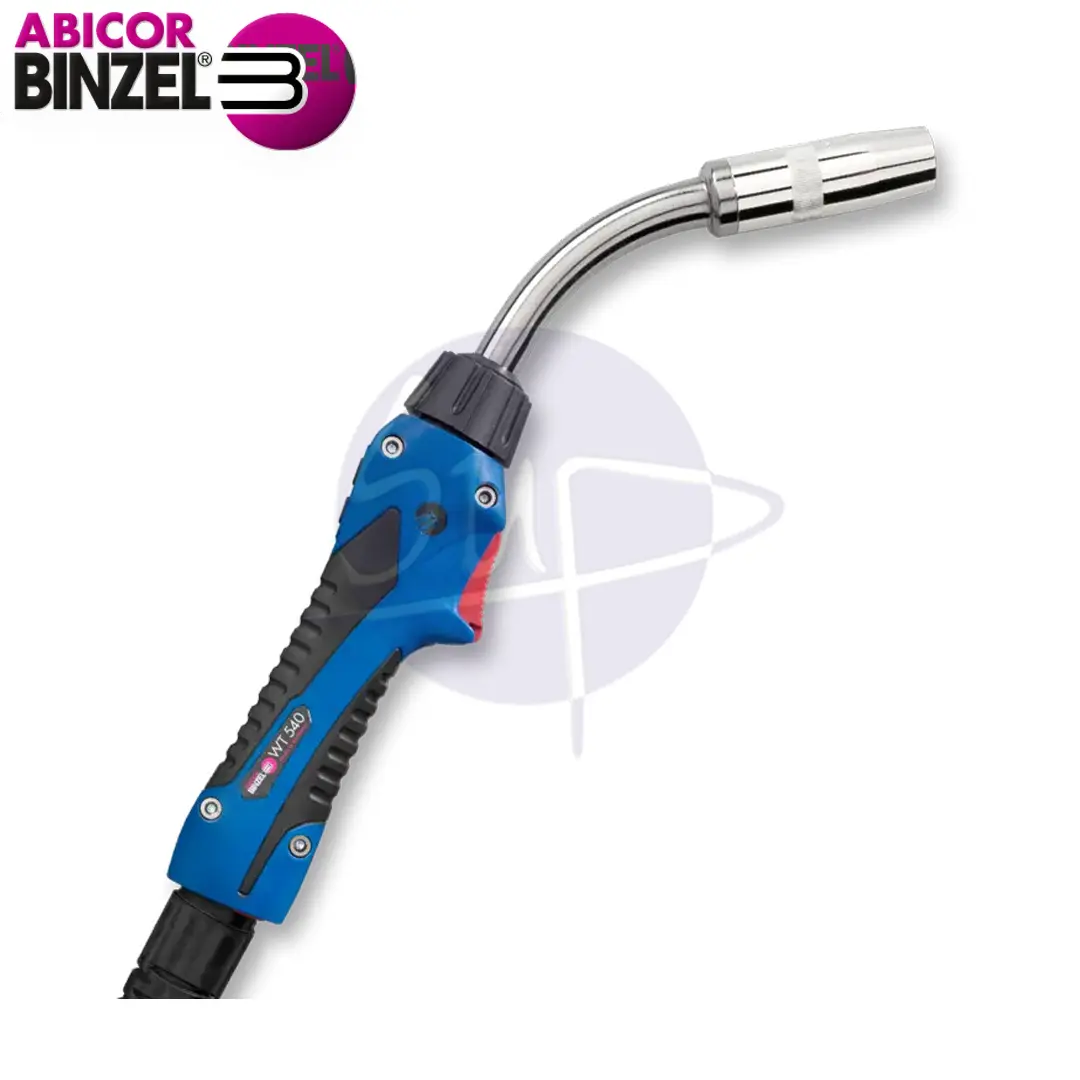

ABICOR BINZEL ABIMIG® W T – Rotatable Water-Cooled MIG Torch for Maximum Performance
The ABIMIG® W T from ABICOR BINZEL is a modular, water-cooled MIG/MAG welding torch designed for high-duty-cycle, high-amperage applications. With its interchangeable and rotatable torch neck, the ABIMIG® W T offers unmatched welding flexibility, thermal efficiency, and long service life.
Ideal for welding in hard-to-reach areas or long production lines, this torch is built to reduce operator strain while delivering superior arc stability under extreme welding conditions.
Key Features
-
- 360° Rotatable Torch Neck
Adjust the torch angle instantly without repositioning the torch body—ideal for out-of-position or robotic welding. - Interchangeable Neck System
Quickly swap neck geometries (length, bend angle) to suit the welding task or automation setup. - Efficient Water Cooling
Maintains optimal temperature for high amperage welding, reducing wear on consumables and torch components. - BIKOX® Cable Assembly
Flexible, durable, and water-cooled for maximum longevity under industrial loads. - Robust, Ergonomic Handle
Designed to ensure comfort and grip, even during extended operation in demanding environments.
- 360° Rotatable Torch Neck
| Specification | ABIMIG® W T |
|---|---|
| Cooling Type | Water-cooled |
| Max Amperage (CO₂) | Up to 550 A |
| Duty Cycle | 100% |
| Wire Diameter | 0.8 – 1.6 mm |
| Torch Neck | Interchangeable, 360° rotatable |
| Cable Type | BIKOX® water-cooled |
| Connector Options | Euro / customized |
Ideal Applications
-
- Automated & robotic welding cells
- Shipbuilding and steel structure welding
- Trailer and tank fabrication
- Industrial production lines
- Thick material MIG/MAG welding
Key Benefits
-
- Ultra-high amperage capability (up to 550 A)
- Full neck rotation for better positioning and accessibility
- Durable construction for long welding cycles
- Modular parts system simplifies maintenance and upgrades
- Seamlessly integrates into manual or robotic welding systems
The ABIMIG® W T combines high-end water cooling with a fully rotatable, modular torch neck system—giving welders unmatched control, reach, and cooling power. Whether you’re building ships, fabricating steel structures, or automating production lines, this torch ensures superior arc stability and reduced downtime, even in the most intense welding environments.
