DH-ROBOTICS RGI-35-12
Description
Technical specification

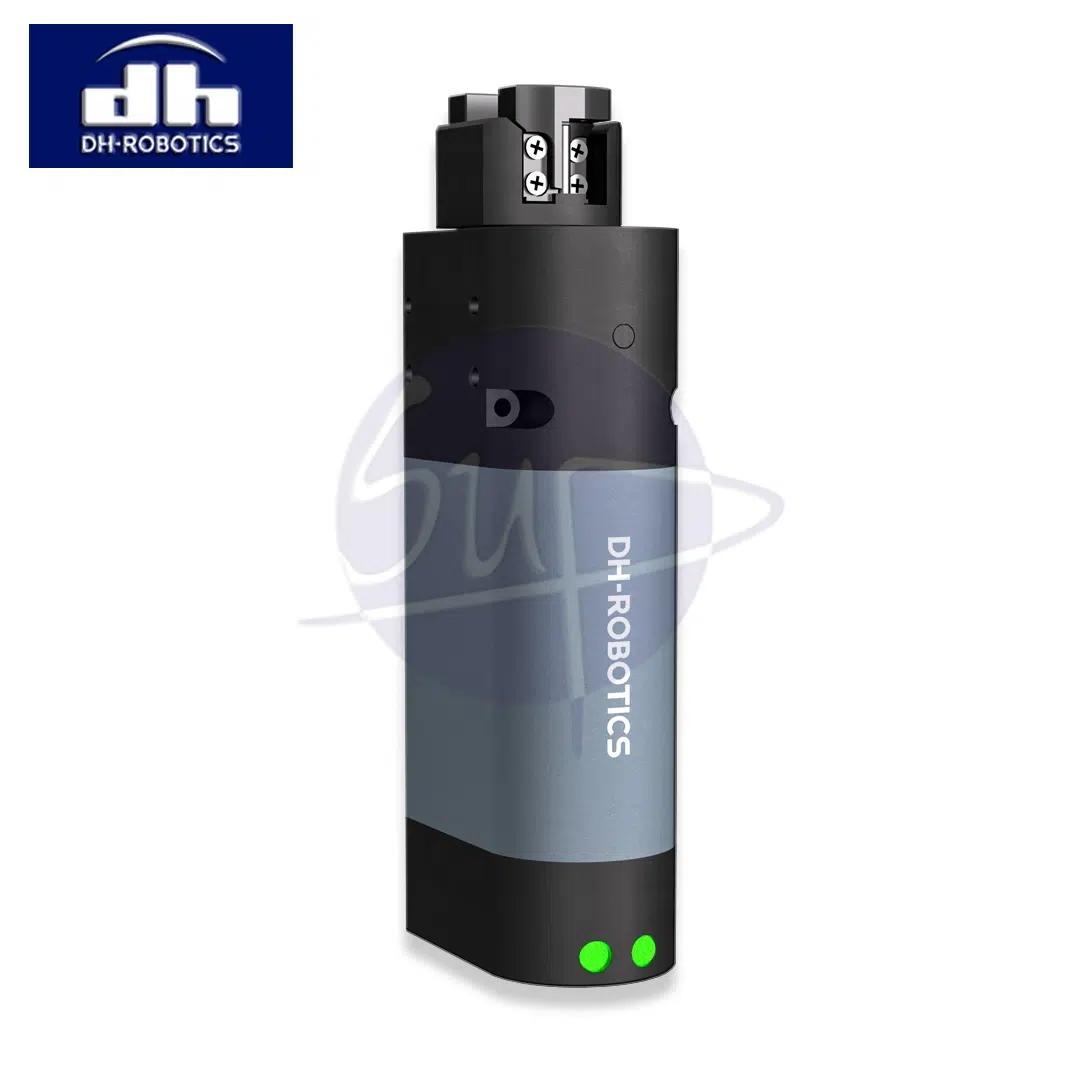

DH-Robotics RGI-35-12: Compact Electric Rotary Gripper with Infinite Rotation
The DH-Robotics RGI-35-12 is a state-of-the-art electric rotary gripper designed to deliver precise gripping and rotational capabilities in a compact form factor. Engineered for applications requiring high precision and space efficiency, this gripper is ideal for industries such as electronics, medical automation, and precision assembly.
Key Features:
-
Compact and Lightweight Design: Measuring 150 mm × 53 mm × 34 mm and weighing only 0.64 kg, the RGI-35-12 is designed for integration into systems with limited space without compromising performance.
-
High Precision Gripping: Offers a gripping force range of 13 to 35 N per jaw with a stroke of 12 mm, ensuring reliable handling of delicate components.
-
Infinite Rotation Capability: Equipped with a dual-servo system, the gripper provides continuous rotation, eliminating the need for cable management systems and enhancing operational flexibility.
-
Integrated Controller: The built-in controller simplifies system integration and reduces the need for additional control hardware, streamlining the setup process.
-
Versatile Communication Interfaces: Supports Modbus RTU (RS485) and Digital I/O as standard, with optional interfaces including TCP/IP, USB 2.0, CAN2.0A, PROFINET, and EtherCAT for seamless integration into various control systems.
Technical Specifications:
-
Gripping Force (per jaw): 13–35
-
Stroke: 12 mm
-
Recommended Workpiece Weight: Up to 0.5 kg
-
Opening/Closing Time: 0.6 s / 0.6 s
-
Repeat Accuracy (Position): ±0.02 mm
-
Repeat Accuracy (Swiveling): ±0.05°
-
Maximum Rotation Speed: 2160°/s
-
Rated Torque: 0.2 N·m
-
Peak Torque: 0.5 N·m
-
Weight: 0.64 kg
-
Dimensions: 150 mm × 53 mm × 34 mm
-
Power Supply: 24 V DC ±10%
-
Rated Current: 1.7 A
-
Peak Current: 2.5 A
-
IP Rating: IP40
-
Operating Environment: 0–40°C, humidity under 85% RH
-
Certifications: CE, FCC, RoHS
Applications:
The RGI-35-12 is ideally suited for:
-
Electronics Manufacturing: Precise handling and assembly of small electronic components.
-
Medical Automation: Manipulation of test tubes and other medical devices requiring hygienic and precise operations.
-
Precision Assembly: Tasks requiring accurate positioning and rotation of small parts in confined spaces.
