DWT MF5i PIPE BEVELING
Description
Technical specification

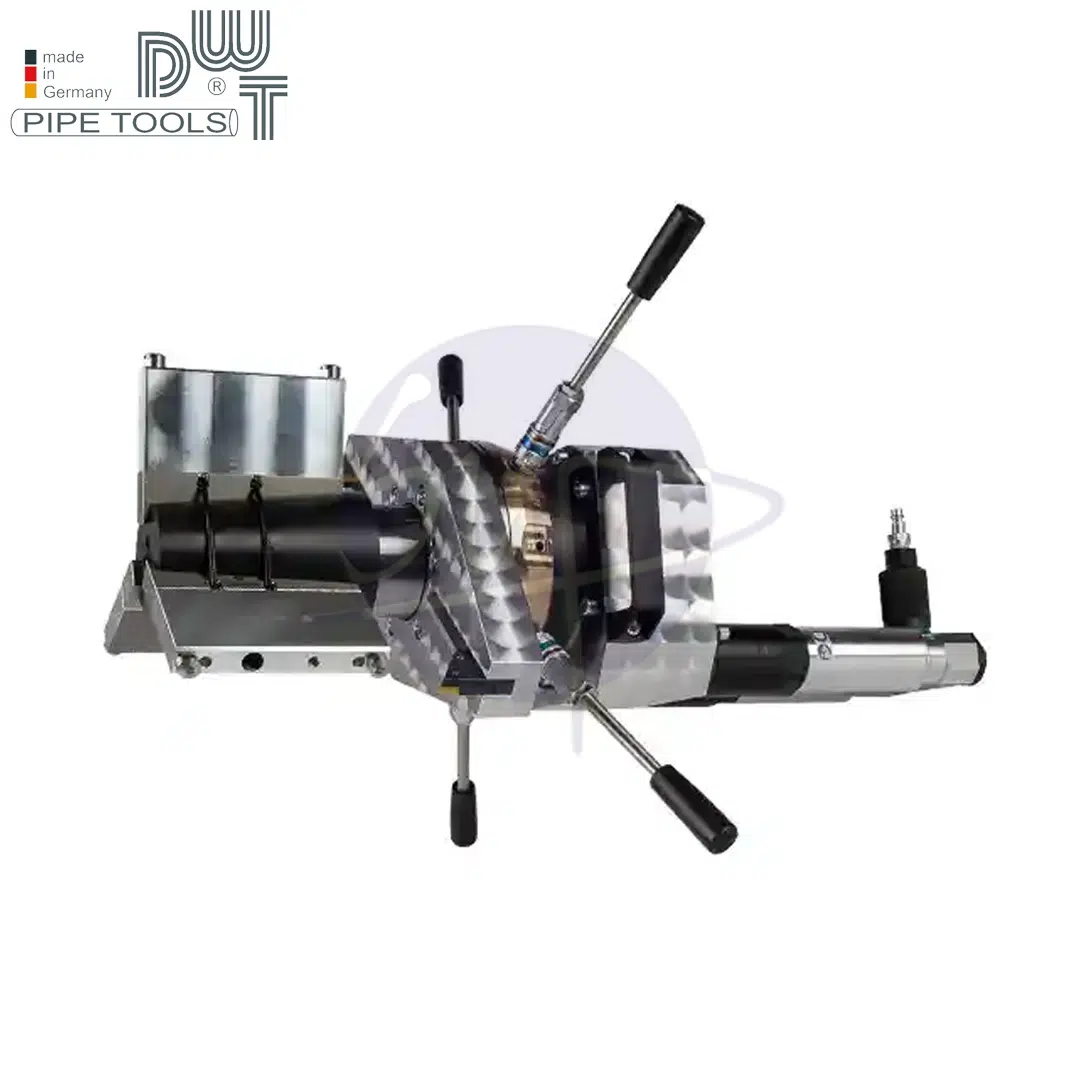

DWT MF5i Pipe Beveling Machine – Precision and Efficiency for Pipe End Preparation
The DWT MF5i Pipe Beveling Machine is a high-performance, portable solution designed for precise and efficient pipe end preparation. Capable of handling pipe diameters ranging from 100 mm to 323.9 mm (3.94″–12.75″), this machine is ideal for various applications, including pipeline construction, shipbuilding, and industrial maintenance.
Key Features:
-
Versatile Pipe Compatibility: Suitable for steel, stainless steel, duplex, and high-alloyed materials, accommodating a wide range of industrial needs.
-
Multiple Drive Options: Available with pneumatic (1,700 W), electric (2,300 W), and hydraulic (8,000 W) motors, providing flexibility based on operational requirements.
-
Adjustable Speed Control: Features speed adjustment, overload protection, and blocking monitoring for safe and controlled operation.
-
Lightweight Design: Constructed with an aluminum alloy body, the machine is lightweight, enhancing portability and ease of use on-site.
-
Comprehensive Weld Prep: Capable of facing, V-prep, J-prep, and counter boring, ensuring optimal weld seam preparation.
-
Working Range (ID-OD): 100–323.9 mm (3.94″–12.75″)
-
Clamping Range (ID-ID): 100–320 mm (3.94″–12.60″)
-
Maximum Wall Thickness: 30 mm (1.18″)
-
Feed: 30 mm (1.18″)
-
Weight: 23.8 kg (pneumatic), 29.0 kg (electric), 33.0 kg (hydraulic)
-
Tooling: Compatible with tool bits, TiN inserts, and custom bits
The DWT MF5i stands out for its high repeatability, quality, and ergonomic design, which collectively enhance productivity and optimize weld seam preparation. Its spark-free and low-noise operation ensures a safer working environment. The machine’s adaptability to various materials and its range of drive options make it a valuable asset for professionals seeking reliable and efficient pipe beveling solutions.
