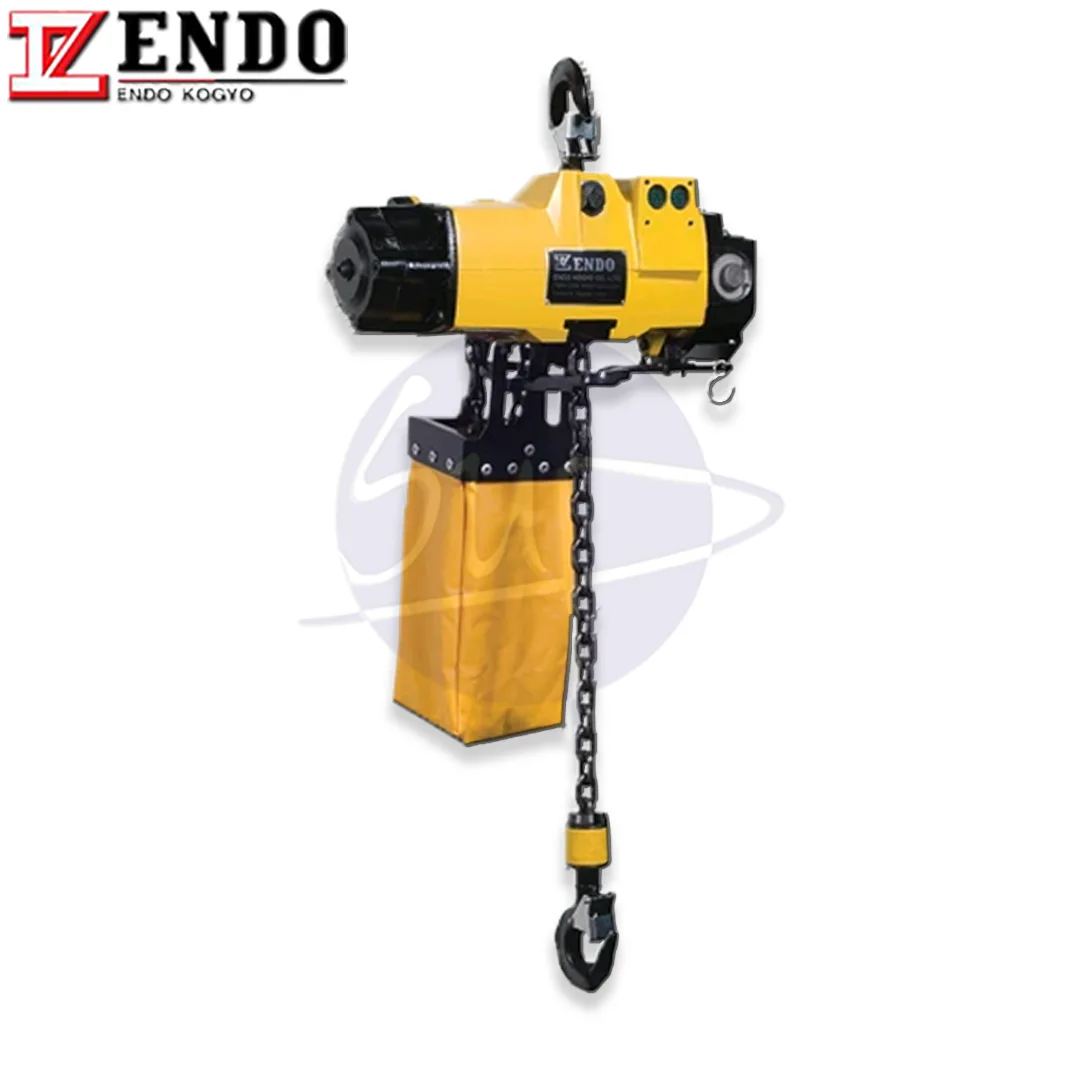

ENDO KOGYO EHL-1TS Air Hoist – Efficient and Safe Lifting Solution
The ENDO KOGYO EHL-1TS Air Hoist is engineered to provide efficient and safe material handling in various industrial environments. With a rated load capacity of 1,000 kg and a 3-meter stroke, this air hoist is ideal for applications requiring precise and reliable lifting.
Key Features ENDO KOGYO EHL-1TS
-
Rated Load: 1,000 kg
-
Stroke: 3 meters
-
Air Pressure: 0.4–0.6 MPa (4–6 kgf/cm²)
-
Lifting Speed: 4.0–6.0 m/min (depending on air pressure)
-
Air Consumption: 1.0–1.8 m³/min
-
Chain Size: 7.1 mm × 1 fall
-
Air Inlet: Rp 1/2
-
Mass: 34.0 kg
The EHL-1TS features a surface-hardened alloy steel load chain, offering excellent toughness and wear resistance . Its compact and lightweight design ensures easy handling and installation, even in confined spaces .
Standard operation is via a pull cord control, with an optional pendant switch available for enhanced control . The hoist’s variable lifting speed allows for precise positioning, making it suitable for tasks like jig setting and assembly work .
Designed to operate in environments with explosion risks, such as chemical plants, the EHL-1TS utilizes an air motor, eliminating electrical hazards .
Manufactured in Japan, the EHL-1TS Air Hoist reflects the company’s commitment to quality and innovation in material handling solutions. Its combination of performance, safety, and efficiency makes it a valuable asset for any industrial setting.
