ENDO KOGYO EHL-1TW
Description
Technical specification

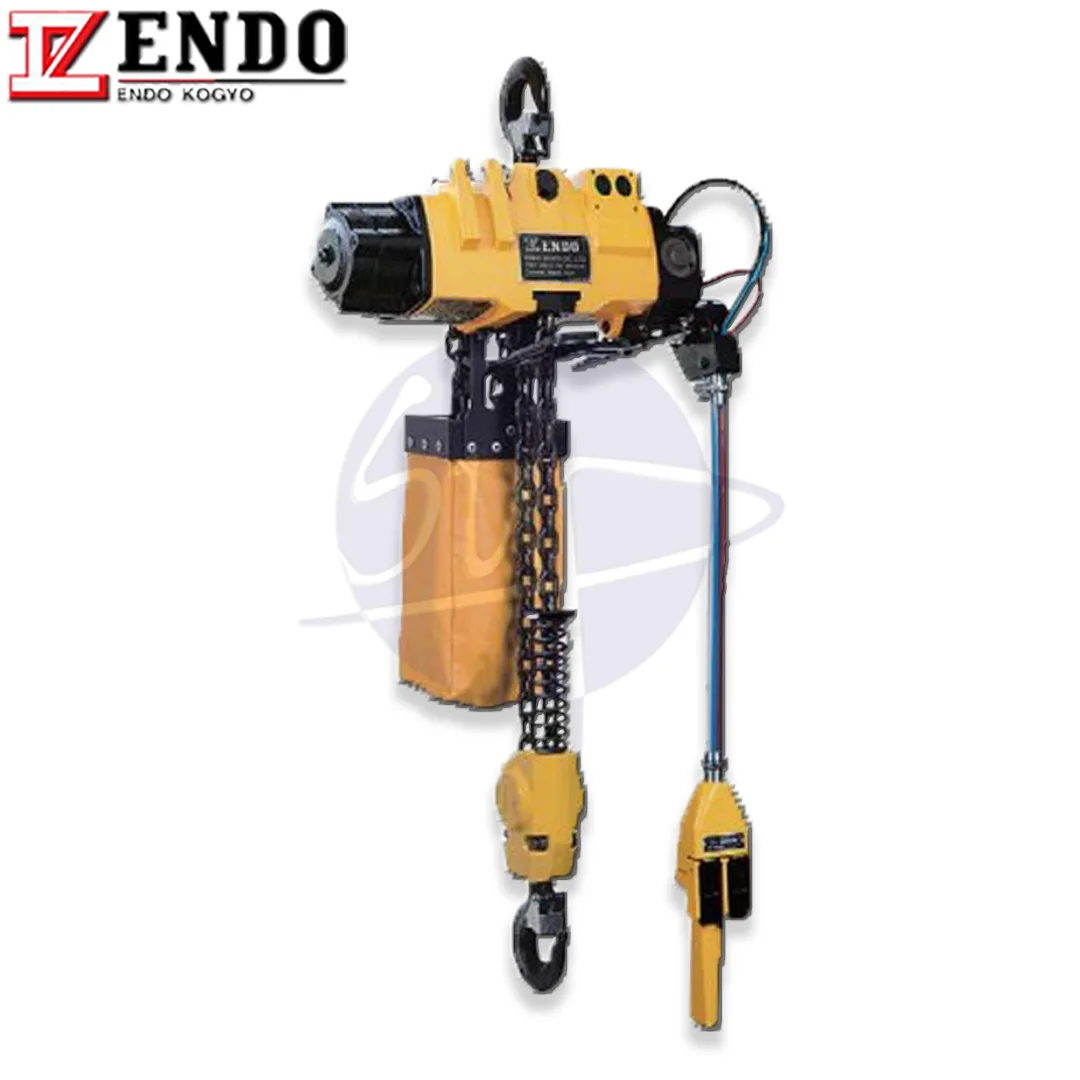

ENDO KOGYO EHL-1TW Air Hoist – Reliable and Efficient Lifting Solution
The ENDO KOGYO EHL-1TW Air Hoist is engineered to provide reliable and efficient lifting in various industrial settings. With a rated load capacity of 1,000 kg and a 3-meter stroke, this air hoist is ideal for applications requiring precise and safe material handling.
Key Features
-
Rated Load: 1,000 kg
-
Stroke: 3 meters
-
Air Pressure: 0.4–0.6 MPa (4–6 kgf/cm²)
-
Lifting Speed: 3.7–5.2 m/min (depending on air pressure)
-
Air Consumption: 0.95–1.65 m³/min
-
Chain Size: 6.3 mm × 2 falls
-
Air Inlet: Rp 1/2
-
Mass: 26.0 kg
The EHL-1TW features a surface-hardened alloy steel load chain, offering excellent toughness and wear resistance . Its compact and lightweight design ensures easy handling and installation, even in confined spaces.
Standard operation is via a pull cord control, with an optional pendant switch available for enhanced control . The hoist’s variable lifting speed allows for precise positioning, making it suitable for tasks like jig setting and assembly work.
Designed to operate in environments with explosion risks, such as chemical plants, the EHL-1TW utilizes an air motor, eliminating electrical hazards.
Manufactured in Japan, the ENDO KOGYO EHL-1TW Air Hoist reflects the company’s commitment to quality and innovation in material handling solutions. Its combination of performance, safety, and efficiency makes it a valuable asset for any industrial setting.
