HOFFMANN – 194220 3
Description
Technical specification
GARANT Corner Rounding Cutter
Straight flutes. Special surface treatment.
Application: for rounding and deburring edges and contours.
Technical Data
| Radius r | 3 mm |
| Feed f2 for side milling in steel < 750 N/mm2 | 0.005 mm |
| Large Ø D2 | 12 mm |
| Small Ø D3 | 6 mm |
| No. of teeth Z | 4 |
| Shank Ø Ds | 12 mm |
| Overall length L | 60 mm |
| Flute length Lc | 3 mm |
| Radius milling | Forwards |
| Coating | Uncoated |
| Tool material | HSS Co 5 |
| Hole tolerance | H11 |
| Direction of infeed | Horizontal |
| Shank | DIN 1835 B to h6 |
| Through-coolant | No |
| Shank tolerance | h6 |
| Colour ring | Without |
| Type of product | Corner rounding cutter, HSS-Co5 |
Discover more
Stylus cleaning kit for probe tips (Renishaw systems); gently removes debris, ensures precise measurements and reliable machine surveying.
ZeroClamp clamping stud Ø12 mm, internal M10 thread, 90 mm length—fits GARANT zero-point clamping system for fast, secure workpiece fixation.
Hard‑foam lid inlay for L‑BOXX® case size 102—protects contents from shifting inside the box during transport.
200 mm ratchet adjustable spanner with sliding head and locking lever, drop-forged steel, non-slip grips—perfect for tight spaces and fast work.
200 mm straight snipe‑nose pliers, drop-forged Cr‑V steel, induction‑hardened cutting edges, serrated inner jaws, comfortable grip—perfect for precision work
GARANT Hexagon Key L-Wrench Set with Ball Point & retainer ball, Chrome-Plated
19‑pc HSS jobber drill set, 1–10 mm range, 0.5 mm increments, uncoated, in a neat plastic case—perfect for precise drilling and general workshop needs
All-steel clamp with fold-out handle, 300 mm jaw capacity, spindle lock, Haptoprene rubber grip—secure clamping for precision work and industrial applications.
Adjustable tap wrench (DIN 1814), galvanized steel handle, hardened jaws, 125 mm length—suitable for taps M1–M8 and reamers up to ⌀6.5 mm
C-hook (pin) spanner Ø25–28 mm, made from hardened, burnished special steel with Ø3 mm pin—durable and precise for external nuts.

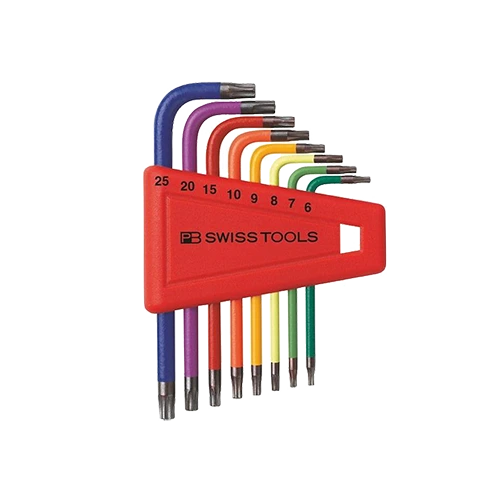

8‑pc Torx® L‑wrench set with rainbow powder coating, made of tough PB Swiss alloy—durable, color-coded, and clip-mounted for easy access.
