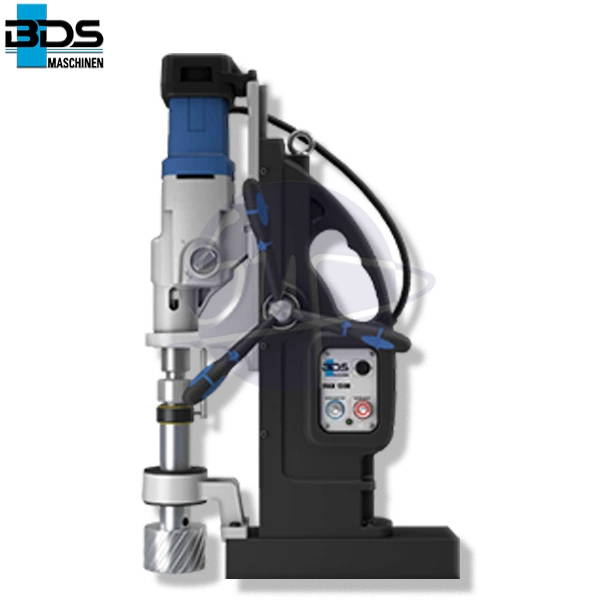

BDS Maschinen MAB 1300
Description
Technical specification
The BDS Maschinen MAB 1300 is a high-performance magnetic core drilling machine engineered for demanding industrial applications. Equipped with a robust 2,300 W motor, it delivers exceptional power, enabling core drilling up to 130 mm (5-1/8 inches) in diameter and a maximum cutting depth of 110 mm (4-21/64 inches).
This versatile machine supports twist drilling up to 45 mm (1-3/4 inches), reaming up to 50 mm (1-31/32 inches), countersinking up to 80 mm (3-5/32 inches), and thread cutting up to M42 (1-5/8 inches). Its Morse Taper MT 4 spindle ensures compatibility with a wide range of drilling accessories.
Superior performance with exceptional power delivery.
2.300 W motor power, four speeds and a full package of features leave nothing to be desired. The MAB 1300 goes to the limit of magnetic core drill technology.
- Full wave control electronics
- Overheating protection
- Torque control
- Clockwise/anticlockwise rotation
- Magnet indicator
- Permanent internal lubrication
- Drilling of diameters up to 130 mm
| MAB 1300 | |
| Motor output | 2,300 W |
| Voltage | 230 V AC, 50-60 Hz |
| Stroke/without steady | 85/310 mm |
| Magnet dimensions | 120 x 360 x 65 mm |
| Weight | 51 kg |
| Spindle taper | MT 4 |
| Gear 1 range: 30 – 80 rpm | Gear 2 range: 50 – 120 rpm |
| Gear 3 range: 130 – 350 rpm | Gear 4 range: 210 – 550 rpm |
| Safety clutch | √ |
| Permanent internal lubrication | √ |
| Torque control | √ |
| Full wave control electronics | √ |
| Magnet indicator | √ |
| Overheating protection | √ |
| Clockwise/anticlockwise rotation | √ |
| Carbon brush wear indicator | √ |
| Power-Assist servo drilling | √ |
| MAB 1300 230 V | |
| MAB 1300 110/125 V | |
| Core drill | Twist drill | Reamer | Countersink | Tapping |
| Max. Ø 130 mm | Ø 45 mm | Ø 50 mm | Ø 80 mm | M42 |
| Cutting depth:
30-55-75-110 mm |
