OTC DAIHEN MODEL 1SB
Description
Technical specification

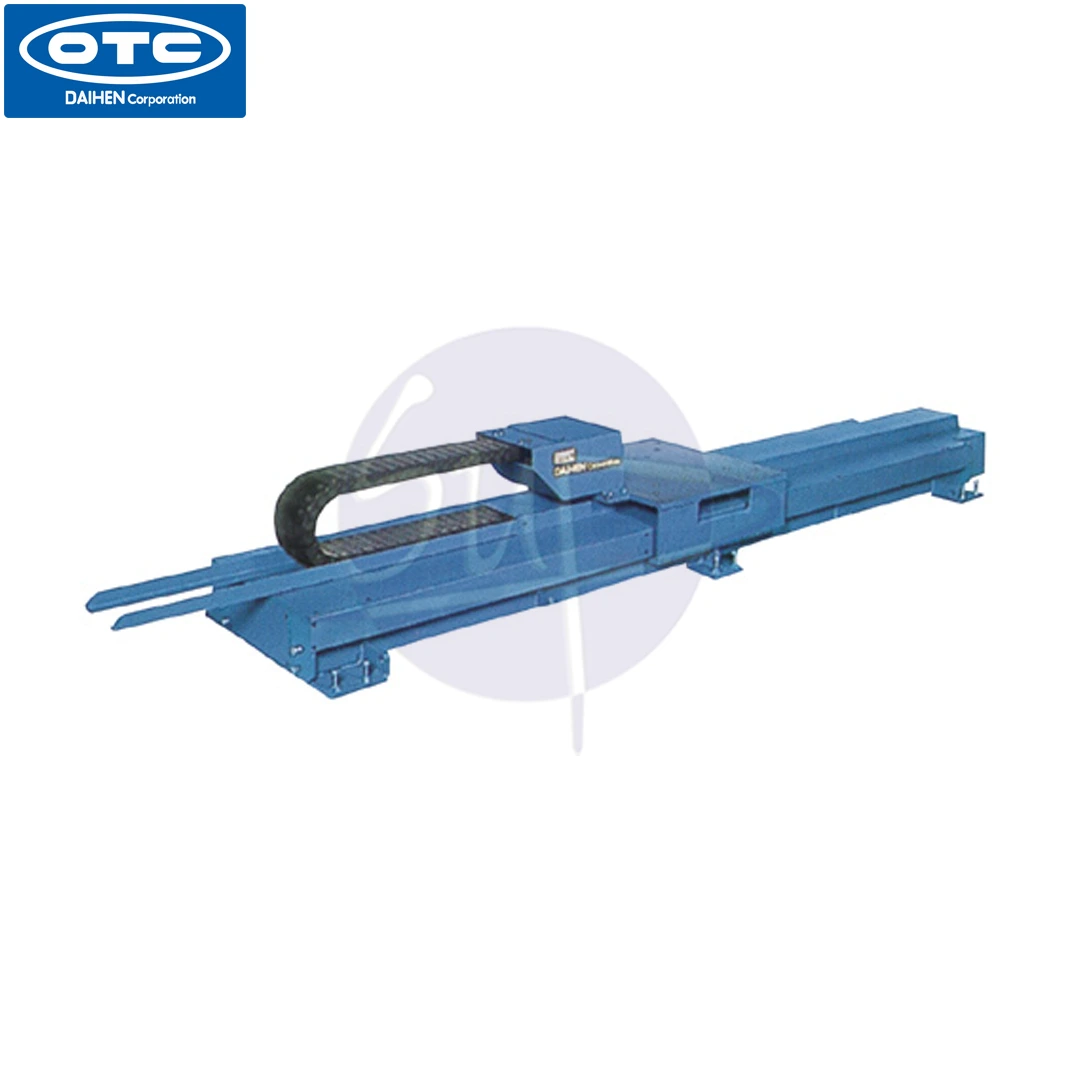

OTC DAIHEN 1SB – Linear Motion for Light-Duty Welding Automation
The OTC DAIHEN 1SB is a belt-driven linear slider designed to enhance the flexibility and reach of your welding robot in compact and light-duty applications. This model enables your robot to travel along a straight axis, allowing it to weld long workpieces or access multiple weld zones without repositioning the part.
Compact and Efficient for Lightweight Tasks
With a maximum payload of up to 200 kg, the 1SB offers smooth motion and fast travel speeds, making it ideal for applications where speed and economy are priorities. Its compact structure is perfect for space-constrained welding cells.
Optimized for Seamless Integration
The 1SB integrates easily with OTC FD Series robot controllers and supports Synchromotion, allowing synchronized movement between the robot arm and the slider for precision and efficiency.
Key Features:
-
- Belt-driven linear motion system
- Lightweight and compact design
- High-speed travel up to 1.5 m/s
- Supports Synchromotion with OTC controllers
- Ideal for long workpieces and multi-station welding
- Cost-effective solution for entry-level automation
| Specification | Detail |
|---|---|
| Model | 1SB |
| Drive System | Belt Drive |
| Max Stroke Length | Up to 5 meters |
| Max Speed | ~1.5 m/s |
| Repeatability | ±0.2 mm |
| Payload Capacity | Up to 200 kg |
| Control System | OTC FD Series Controller |
| Integration | Supports Synchromotion |
| Application | Light-duty robotic welding, multi-zone access |
📍 We supply OTC Daihen robotic automation systems and positioners across Indonesia.
