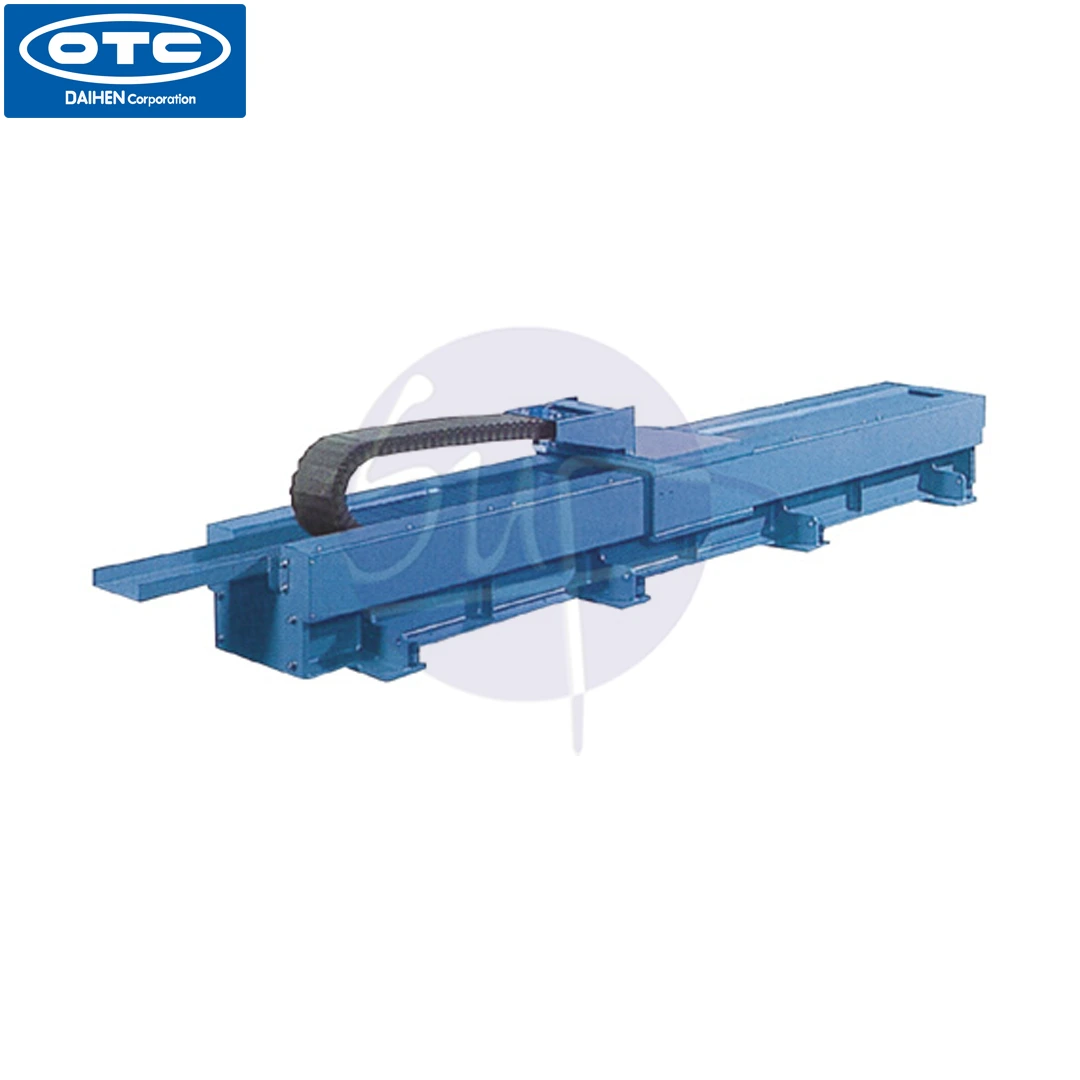

OTC DAIHEN 1SR – Rugged Linear Slider for Medium-Duty Welding Automation
The OTC DAIHEN 1SR is a rack-and-pinion-driven linear slider built for medium-duty robotic applications. Designed to move robotic arms along a linear axis with strength and precision, the 1SR extends the reach of your welding system across large or multiple workstations—ideal for structural welding, frames, and long assemblies.
Built for Medium-to-Large Welding Projects
With a payload capacity of up to 500 kg and stroke lengths reaching up to 10 meters, the 1SR handles moderate to heavy components with reliable performance. Its rack-and-pinion system ensures stable motion even under continuous use and load.
Fully Synchronized with Robot Movement
The 1SR works seamlessly with OTC FD Series robot controllers and supports Synchromotion, allowing simultaneous movement of the robot arm and slider for accurate, continuous welding.
Key Features:
-
- Rack and pinion drive for smooth, consistent movement
- Supports longer stroke lengths up to 10 meters
- Mid-range payload capacity up to 500 kg
- Ideal for structural and multi-position welding
- Integrated with Synchromotion for coordinated control
- Suitable for medium-duty industrial automation setups
| Specification | Detail |
|---|---|
| Model | 1SR |
| Drive System | Rack and Pinion |
| Max Stroke Length | Up to 10 meters |
| Max Speed | ~1.0 m/s |
| Repeatability | ±0.1 mm |
| Payload Capacity | Up to 500 kg |
| Control System | OTC FD Series Controller |
| Integration | Supports Synchromotion |
| Application | Medium-duty robotic welding, large assemblies |
📍 We supply OTC Daihen robotic automation systems and positioners across Indonesia.
