Efficient Side-Mount Cooling Solution for Industrial Enclosures

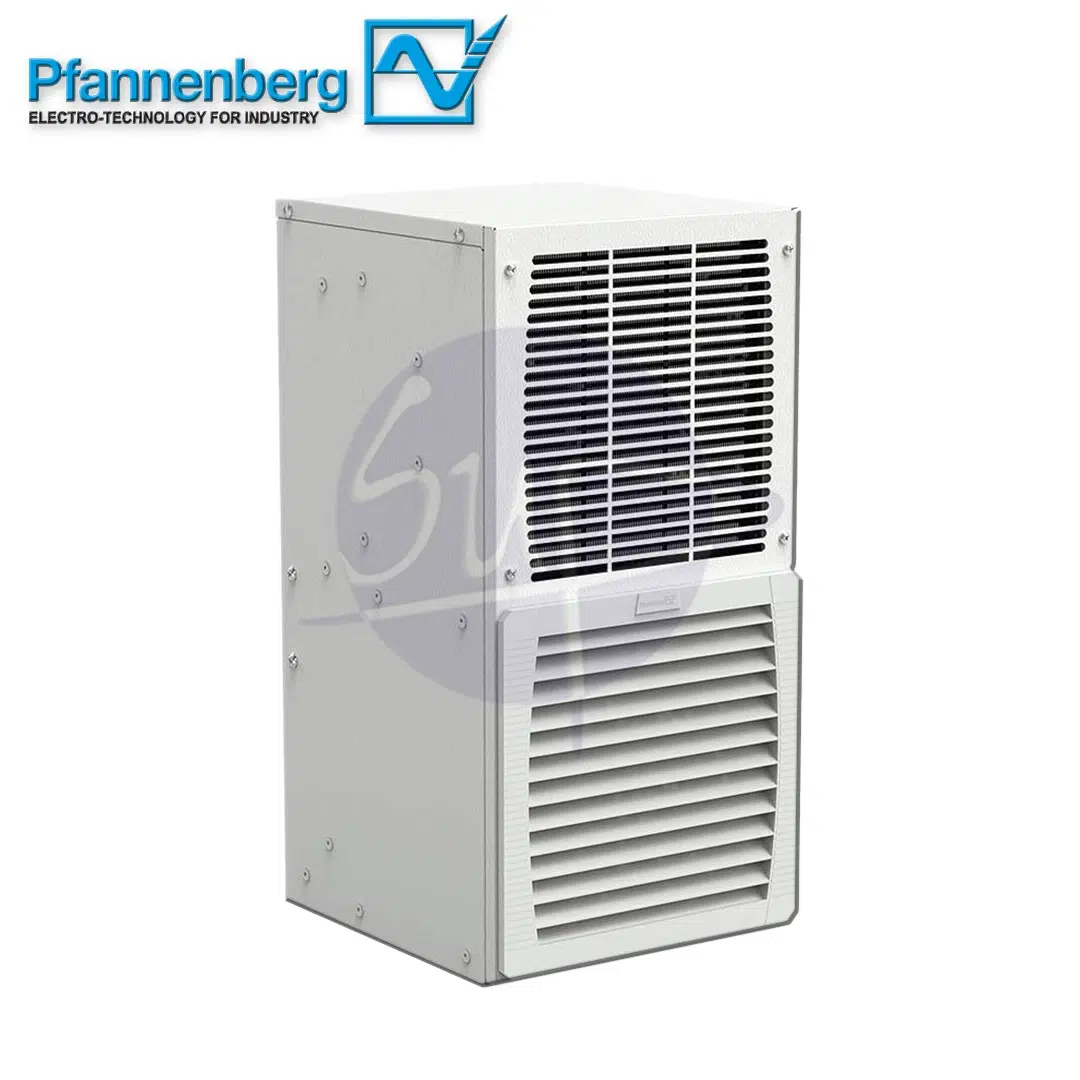

The Pfannenberg 13382344255, designated as the DTS 3041, is a high-performance cooling unit engineered to maintain optimal temperatures within industrial control cabinets. With a cooling capacity ranging from 2000 to 3000 BTU/h, it effectively dissipates heat generated by electronic components, ensuring their longevity and reliable operation. Its side-mount design facilitates easy installation without compromising internal cabinet space.

Key Features

• High Cooling Efficiency: Delivers 2000–3000 BTU/h, suitable for various thermal loads.

• Compact Design: 10-inch width allows installation in space-constrained environments.

• Closed-Loop System: Prevents external contaminants from entering the cabinet, maintaining a clean internal environment.

• Thermal and Pressure Protection: Equipped with overload protection to safeguard the compressor and fan motors.

• Environmentally Friendly Refrigerant: Utilizes HFC-free R134a refrigerant, minimizing environmental impact.

• Hermetically Sealed Compressor: Eliminates the need for recharging, ensuring consistent performance.

• Optimized Condenser Design: Wide fin spacing reduces clogging risks, maintaining efficiency over time.

• Easy Maintenance: Integrated Pfannenberg PFA Exhaust Filter allows straightforward filter replacement.

• Model: DTS 3041

• Part Number: 13382344255

• Cooling Capacity: 2000–3000 BTU/h

• Operating Voltage: 115V AC

• Frequency: 60 Hz

• Power Consumption: Approximately 789 W

• Current Rating: 3.12 A

• Noise Level: <64 dB(A)

• Dimensions (H x W x D): 20.15 x 10 x 10.8 inches (512 x 254 x 274 mm)

• Weight: Approximately 62 lbs (28 kg)

• Material: Powder-coated steel

• Color: Light Grey (RAL 7035)

• Mounting Style: Side Mount

• Protection Rating: NEMA Type 12

• Certifications: UL, cUL, CE

Applications

The DTS 3041 is ideal for:

• Electrical Control Cabinets: Maintaining optimal temperatures for sensitive electronics.

• Automation Systems: Ensuring reliable operation in automated environments.

• Manufacturing Facilities: Providing consistent cooling in production settings.

• Data Centers: Managing heat in server and networking equipment enclosures.

Benefits

• Enhanced Equipment Longevity: By maintaining stable temperatures, it prolongs the life of electronic components.

• Reduced Downtime: Efficient cooling minimizes the risk of overheating-related failures.

• Energy Efficiency: Optimized design reduces power consumption, lowering operational costs.

• Easy Installation and Maintenance: Side-mount design and accessible filters simplify setup and upkeep.
