Fits your needs

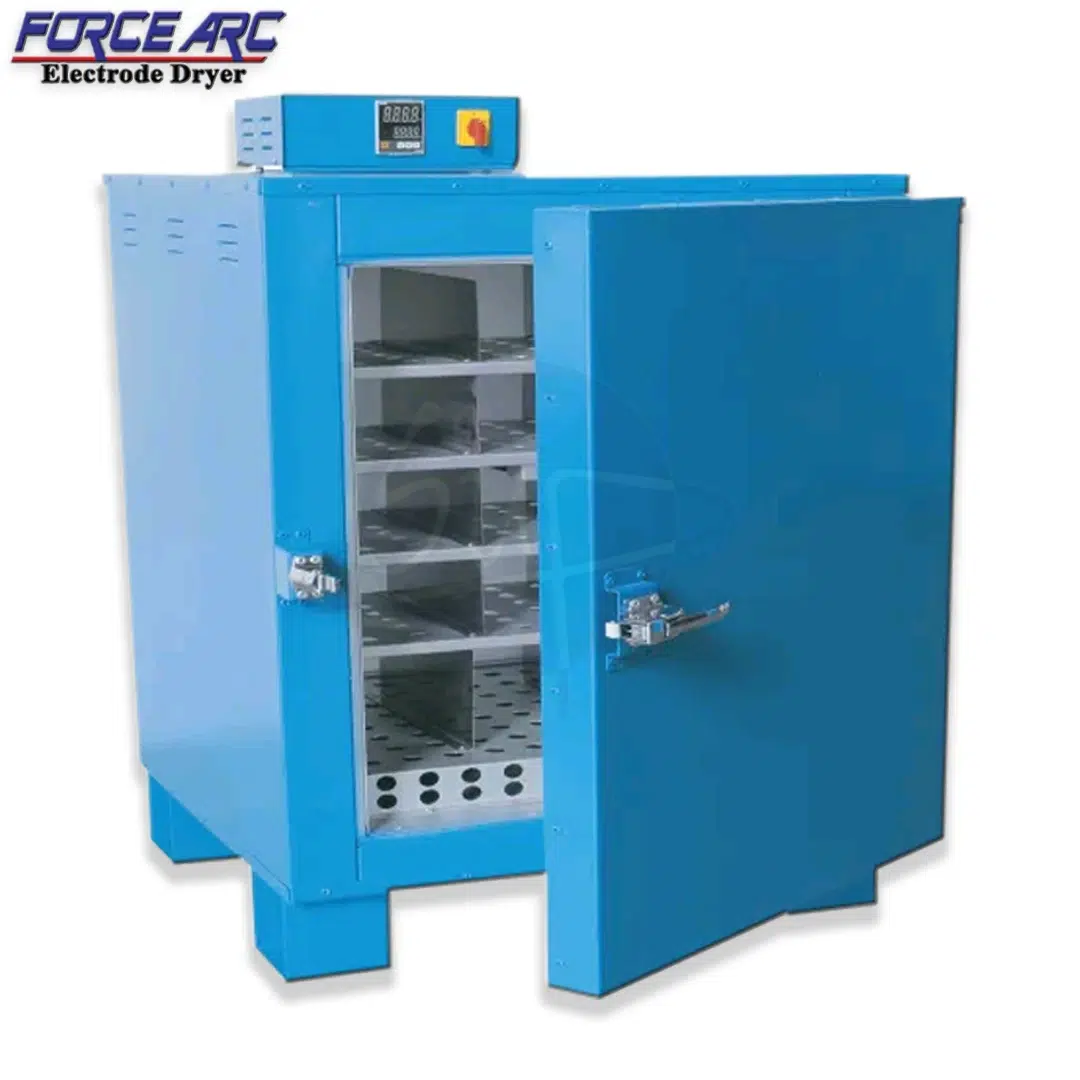

FORCE ARC E60M Floor Type Electrode Oven
Description
Technical specification
Model E 60M
– Capacity (Rod Length 450mm) : 60kgs (estimate)
– Temperature Range (Average Stabilized) : 30′ C ~ 400′ C (86′ F ~ 752′ F)
– Input Voltage AC – 50 / 60Hz :1ph, 190 ~ 240 V (1800 W)
– External Dimension H x D x W : 559 x 762 x 445 mm
(22″ x 30″ x 17.5″)
– Internal Dimension H x D x W : 220 x 500 x 280 mm
(8.7″ x 19.6″ x 11″)
– Body Insulation (Rock Wool) : 75mm / 3″
– Weight : 45 kgs / 99 Ibs
Fitting your needs
PRODUCTS
Floor Type Electrode Oven Designed For Re-baking, Aging and Moisture Free of Welding Electro
Floor Type Electrode Oven Designed For Re-baking, Aging and Moisture Free of Welding Electro

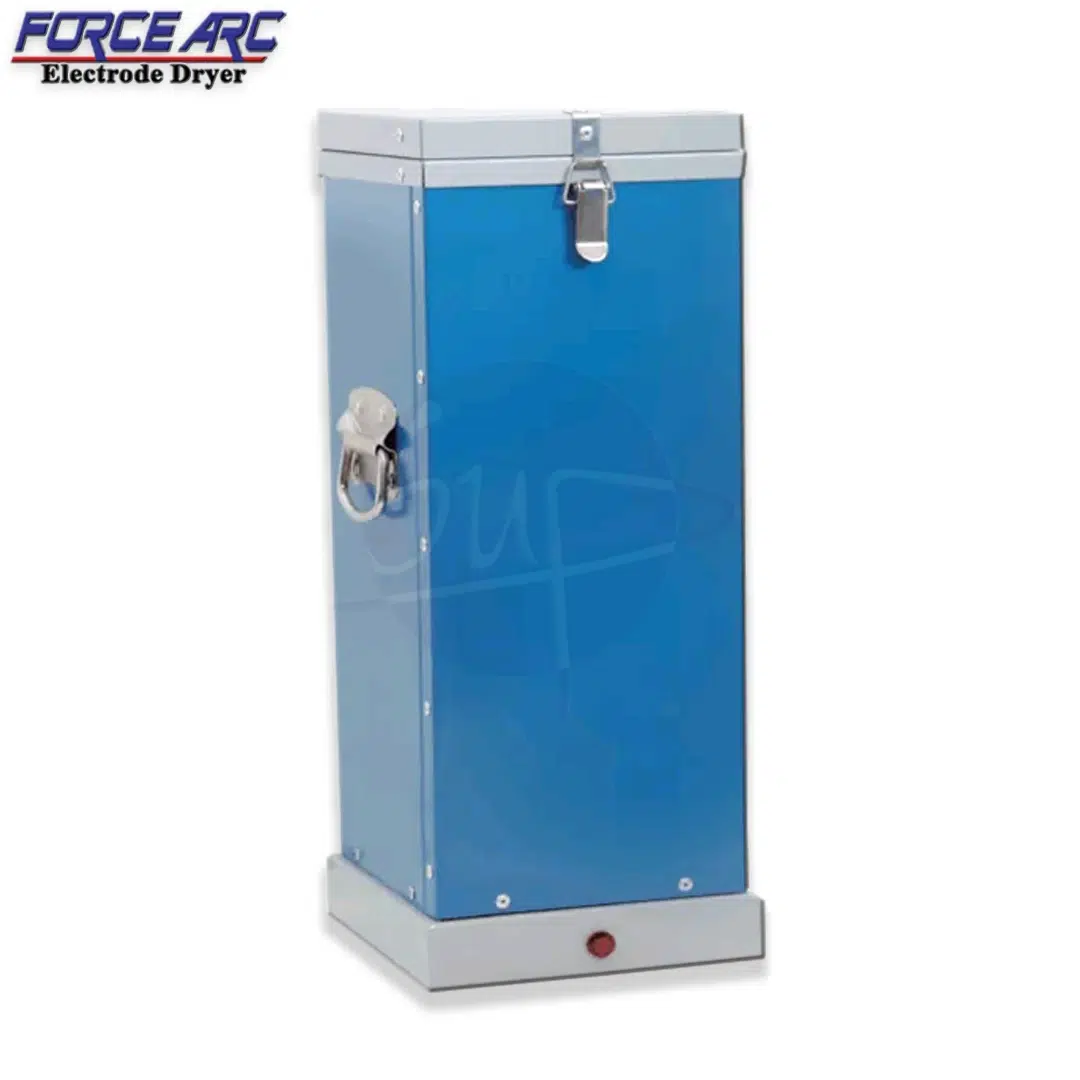

Portable type electrode oven design for holding of welding electrode for high quality welds with its constant temperature.

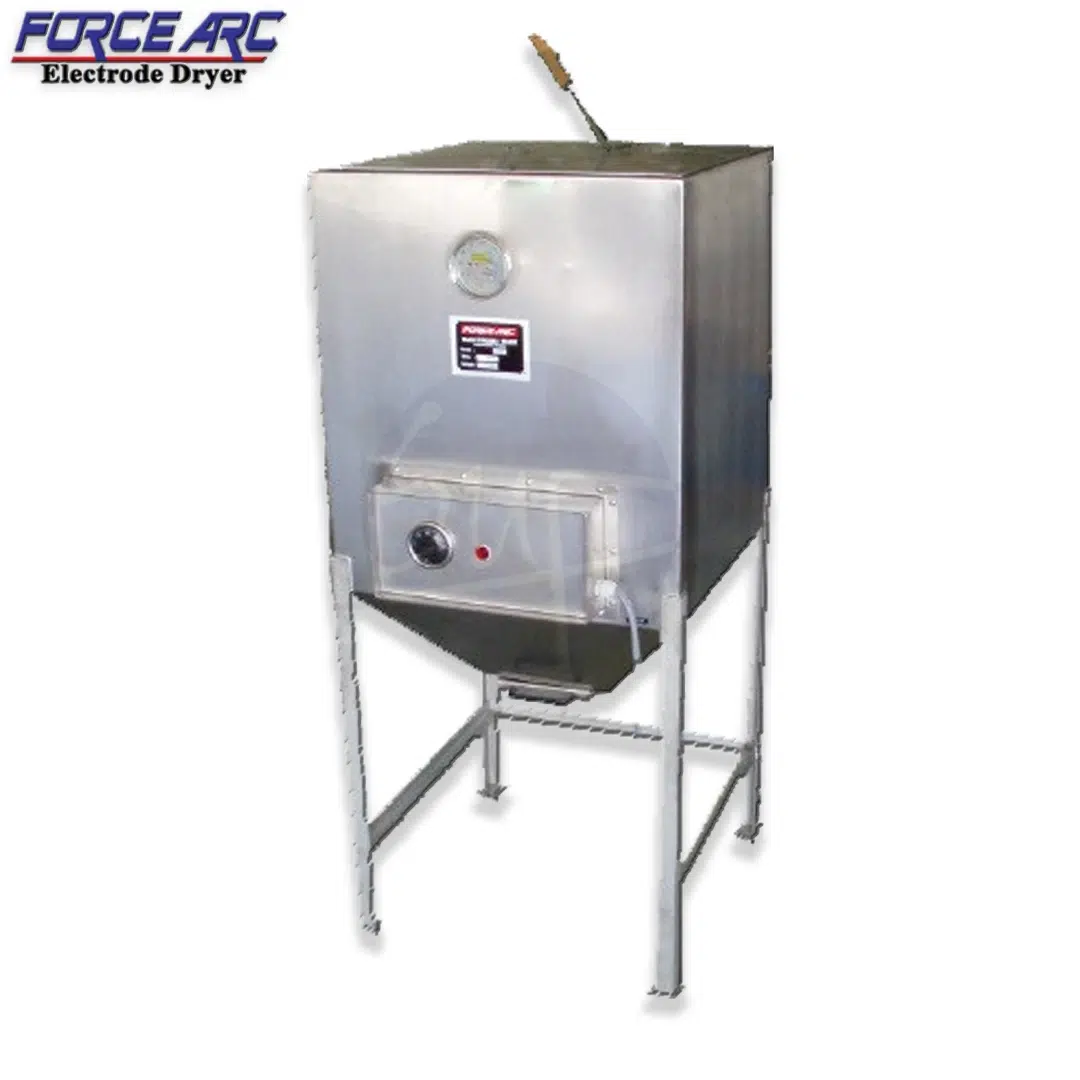

Vertical type flux ovens designed for re-baking re-conditioning and holding of sebmerged arc flux for high quality weld and assist you in protecting your welding profits.
Bench Type Electrode Oven designed for Re-Baking, Re-Conditioning and Holding of welding electrode for high quality weld with build in temperature gauge & adjustable thermostat control.
Removable shelves for the drying of wire coil & pre-heat / post-heat of welded parts.
Stainless Steel internal body to prevent rust.
