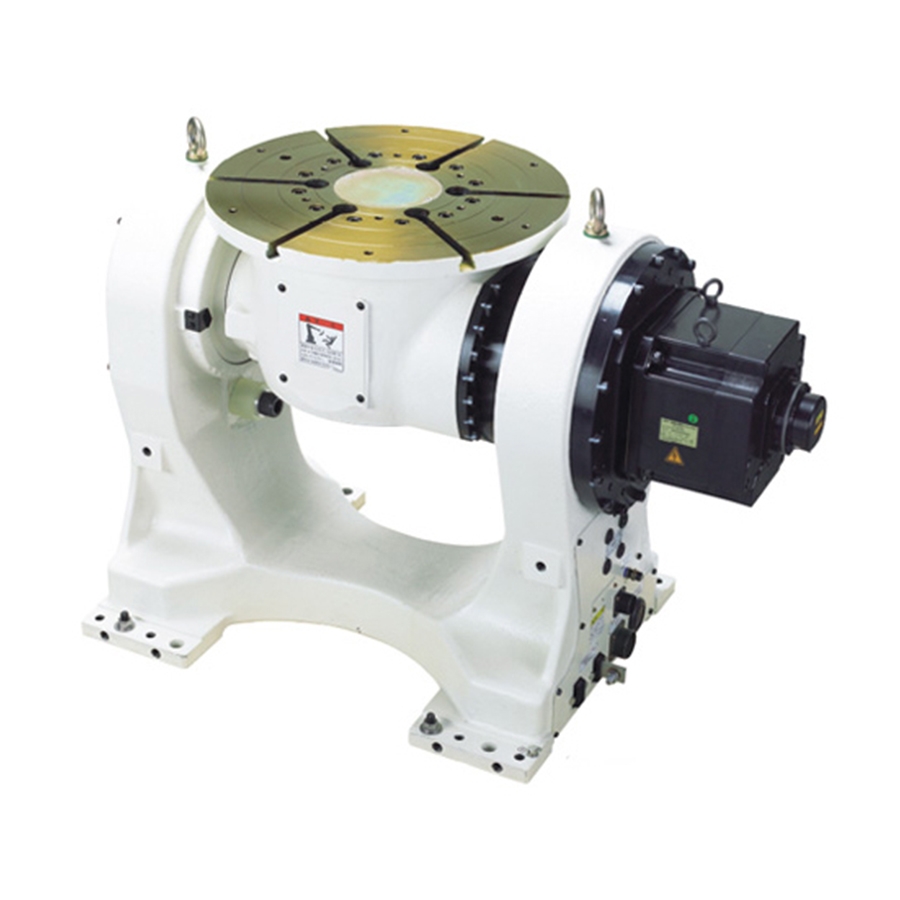

OTC 1-Axis Positioner

Optimize Welding Accuracy and Efficiency

Work in the optimum position with the advanced OTC 1-Axis Positioner, engineered for seamless integration with OTC Daihen robotic welding systems. This high-performance positioner enables precise rotation on a single horizontal or vertical axis, significantly improving weld quality and access to challenging workpiece angles.

Designed for automation environments that demand accuracy and consistency, the OTC 1-Axis Positioner helps ensure uniform welds by allowing operators to position cylindrical or symmetrical parts with precision. It is ideal for small to medium workpieces and supports a wide range of applications in fabrication, automotive, and industrial welding.

Compact, Powerful, and Reliable

The OTC 1-Axis Positioner is built for durability and high load capacity, capable of handling workpieces weighing up to 1000 kg depending on the model. Its integration with OTC teach pendants ensures smooth motion control and repeatability, making it an essential accessory for any automated welding setup.

Key Models & Specs
Model Payload Speed Torque Repeatability Weight
1PB250 250 kg 150°/s (2.6 rad/s) 206 N·m ±0.1 mm @ R=300 mm 110 kg
1PB500 500 kg 120°/s (2.1 rad/s) 490 N·m ±0.1 mm @ R=300 mm 170 kg
1PB1000 1,000 kg 72°/s (1.3 rad/s) 1,078 N·m ±0.1 mm @ R=300 mm 220 kg

Improved Welding Access and Flexibility

Rotating your workpieces to the perfect angle can significantly reduce cycle time and improve operator safety. This positioner allows for 360° continuous rotation, offering flexibility in welding difficult-to-reach joints and surfaces. Optional tailstock support is available for long or unbalanced workpieces, further enhancing stability during rotation.

Key Features :

  • Single Axis Rotation: Ideal for rotating symmetrical or cylindrical parts during welding.
  • High Payload Capacity: Supports up to 1000 kg (model-dependent).
  • Fully Programmable: Syncs with OTC robot teach pendants for full automation.
  • Durable Industrial Build: Constructed for harsh environments and continuous use.
  • Tailstock Option: Available for extended or heavy-duty parts requiring support.
