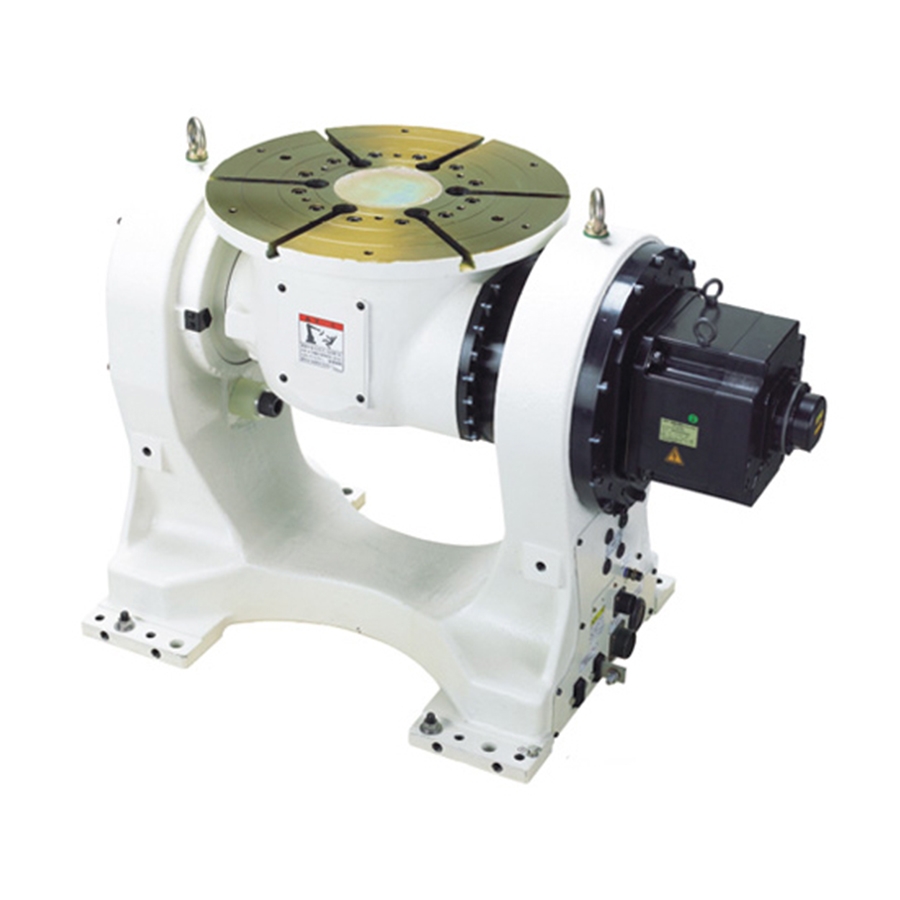

Boost welding precision with the OTC 2-Axis Positioner – engineered for optimal part access and rotation. Designed to handle more complex workpieces, this powerful positioner allows controlled movement on two independent rotary axes, ensuring flexible positioning for high-precision welds.
Whether you’re working with irregularly shaped parts, multi-angle joints, or need synchronized rotation and tilt, the OTC 2-Axis Positioner is the ideal solution. Fully integrated with OTC Daihen robotic systems, this unit enhances your welding automation with greater accessibility and repeatability.
With a robust construction and programmable rotation and tilt axes, this positioner enables you to rotate and tilt parts during welding, ensuring ergonomic positioning and better weld penetration. From automotive components to heavy machinery parts, it is engineered to meet the highest standards in productivity and quality.
Robot Accessories
Precision & Flexibility for Robotic Welding Systems
The OTC 2-Axis Positioner is a high-performance robotic accessory designed to improve welding access, accuracy, and efficiency in multi-angle operations. Perfectly integrated with OTC Daihen robotic arms, this positioner provides synchronized movement and programmable rotation on two axes — enabling optimal part orientation during the welding process.
| Model | Max Payload | Tilt Range | Rotation Range | Repositioning Accuracy | Max Speed (Tilt/Rotation) | Unit Weight | Center Hole | Notes |
|---|---|---|---|---|---|---|---|---|
| 2PF300 | 300 kg | ±135° | 360° Continuous | ±0.1 mm at R=300 mm | 1.4 rad/s / 1.7 rad/s | Approx. 260 kg | Yes | Compact size, general use |
| 2PF500 | 500 kg | ±135° | 360° Continuous | ±0.1 mm at R=300 mm | 1.3 rad/s / 1.6 rad/s | Approx. 320 kg | Yes | Balanced for medium loads |
| 2PF1000 | 1000 kg | ±135° | 360° Continuous | ±0.1 mm at R=300 mm | 1.1 rad/s / 1.5 rad/s | Approx. 410 kg | Yes | Heavy-duty applications |
All models are fully programmable via OTC Teach Pendant and support secondary terminal up to 500A.
