Extend Your Welding Reach with Precision

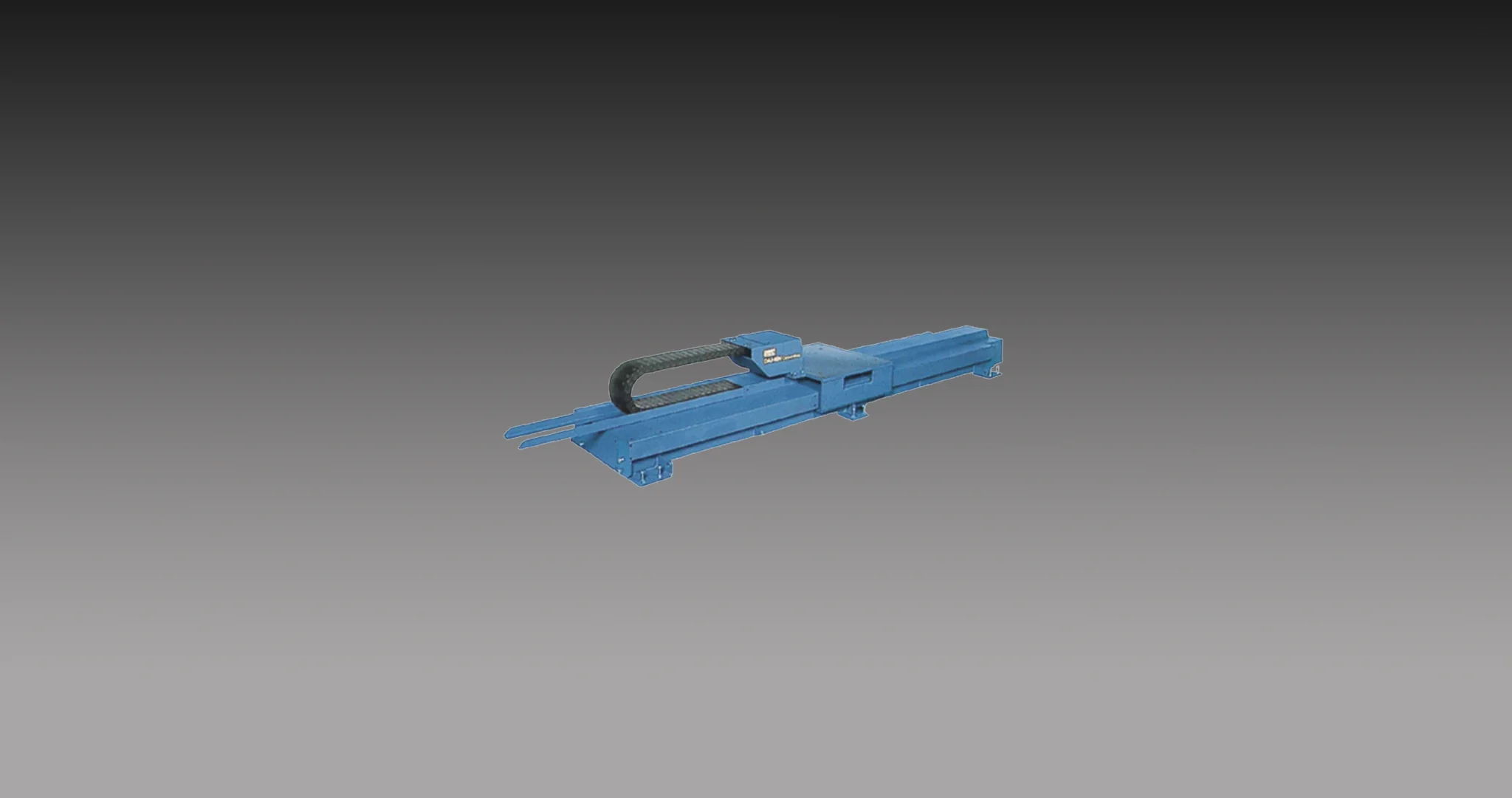

OTC SLIDER

The OTC Daihen Slider is a high-performance linear axis designed to extend the working envelope of robotic welding systems. By enabling linear movement along a designated axis, this slider allows your welding robot to cover larger workpieces, reach multiple welding stations, or perform long continuous welds-without repositioning the part.

Expand Your Robotic Automation Capabilities

This linear unit enhances robotic flexibility and productivity by allowing your robot to move along the slider while performing tasks. It’s ideal for long or multi-part welding operations, offering consistent speed, accuracy, and synchronized control with the robot.

Engineered for Integration

Built to work seamlessly with OTC Daihen robotic systems, the OTC Slider supports synchronized motion (Synchromotion) with the robot controller, ensuring smooth, coordinated movement between all axes.

OTC DAIHEN Linear Slider Comparison

Specification	Model 1SB	Model 1SR	Model 1SR-P
Type	Belt-driven Linear Slider	Rack & Pinion Linear Slider	Precision Rack & Pinion Slider
Drive Mechanism	Belt Drive	Rack and Pinion	Rack and Pinion (High Precision)
Stroke Length	Up to 5 meters	Up to 10 meters	Up to 15 meters
Max Speed	~1.5 m/s	~1.0 m/s	~0.8 m/s
Repeatability	±0.2 mm	±0.1 mm	±0.05 mm
Payload Capacity	Up to 200 kg	Up to 500 kg	Up to 1,000 kg
Control System	FD Series Controller	FD Series + Synchromotion	FD Series + Synchromotion
Application	Light-duty welding automation	Medium-duty automation	Heavy-duty, precision automation

Model Summary

• Model 1SB: Suitable for light-duty applications and robots with limited reach.
• Model 1SR: Powerful reach for welding medium- and large-sized components.
• Model 1SR-P: Premium version with high accuracy for heavy-duty and complex applications.
