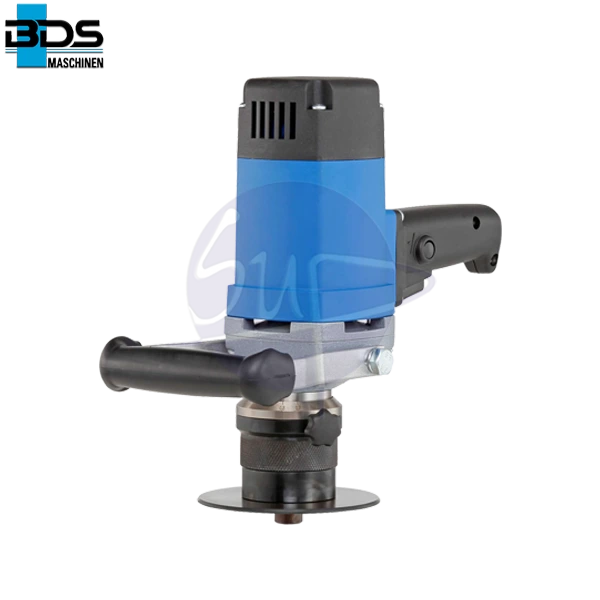

BDS MASCHINEN – EKF 452.3
Technical specification
2.5mm Radius Chamfering
The EKF 452.3 Radius Chamfering Machine is a lightweight machine which weights just 4.6 kg. (10.5 Ibs). This made in Germany chamfering machine is equipped with 1500 Watt (13.6 Amp) robust motor which has 6000 RPM. The EKF series machines are available in 230 Volts as well as in 110 Volts.
Due to its handy, compact design, the machine can be used on straight edges, internal and external radii and for drill holes from diameter 22 mm. The fine adjustment allows slight chamfers for deburring up to the preparation of welding seams.
Three milling cutters with a chamfering angle of 45°, optionally 30° or a radius of 2.5 mm are available. The EKF 452.3 is designed for chamfering 2.5 mm Radii.
Technical Data | EKF 452 |
| Chamfer angle | Radius 2.5 mm |
Chamfer width | Radius 2.5 mm |
| Cutter type | ZFR 452.3 |
Milling tool | Carbide inserts |
| Dimensions (LxBxH) | 310x295x138 mm |
Approx. net weight | 4.6 kg |
| Voltage (see nameplate) | 50-60Hz |
Motor output | 1500W |
| Speed | 6000 rpm |
Feed | Manual |
| Protection type | IP 20 |
| Scope of delivery | |
| Machine | ZFR 452 |
| Milling cutter | ZFR 452.3 |
| Carbide inserts | SHM 202 |
| Hook wrench | 34/36 |
| Torx screwdriver | TX 9 |
| Spanner | SW 22 |
| Carry case | √ |
| Operating instructions | √ |
| Warranty card | √ |
