Carbide Series Annular Cutters
Description
BDS MASCHINEN – Tungsten Carbide Tip (TCT) Core Drills
Technical specification
BDS TCT annular cutters are produced on modern CNC-controlled grinding centers. This guarantees uniform cutting, quality and cutting performance of all BDS annular core cutters across the entire range. Annular cutters of this range are used preferably for machining hard materials and non-ferrous metal in combination with the BDS 6000 coolant or BDS cutting paste.
Technical Spesification:

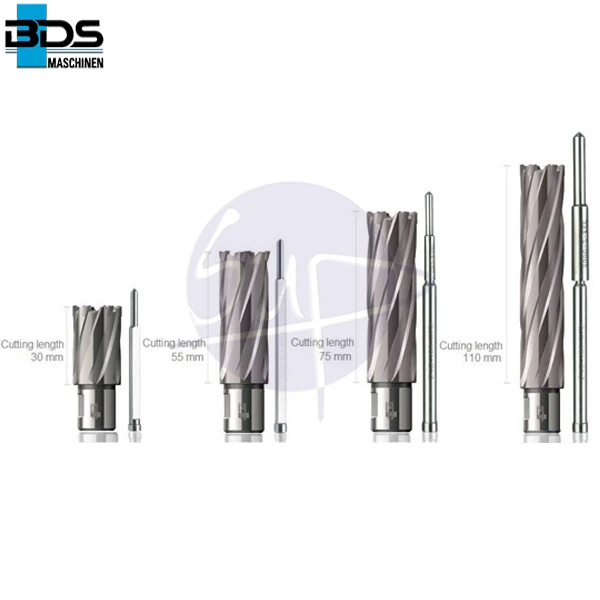

| Short | Long | Over Long | Extra Long | |
| Quality | TCT Standard | TCT Standard | TCT Standard | TCT Standard |
Article no. | HKK | HKL | HKX-L | HKE-L |
| Cutting depth in mm | 30 | 55 | 75 | 110 |
Diameter in mm | 12-150 | 12-100 | 18-120 | 20-120 |
| Weldon Shank | 19 mm (3/4”)/ 32 mm (1 ¼”) | 19 mm (3/4”)/ 32 mm (1 ¼”) | 19 mm (3/4”)/ 32 mm (1 ¼”) | 19 mm (3/4”)/ 32 mm (1 ¼”) |
Ejector Pin | ZAK 075 & 90 | ZAK 100 & 120 | ZAK 225 & 245 | ZAK 275 |
| Lubricant | BDS 6000 | BDS 6000 | BDS 6000 | BDS 6000 |
Carbide Coating | – | – | – | – |
