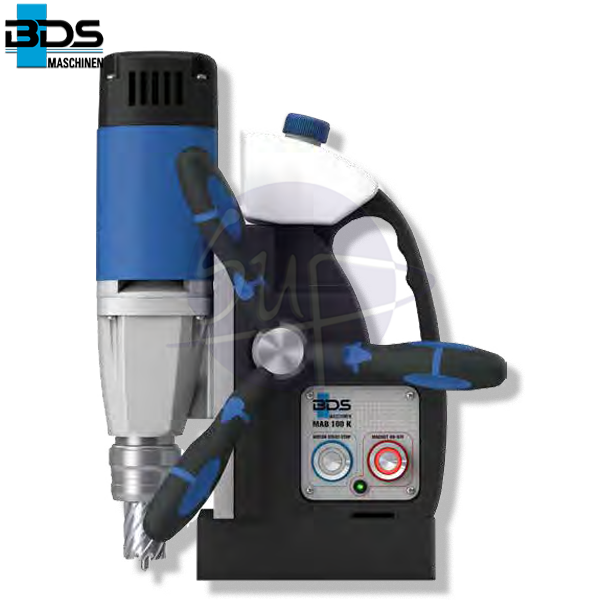

Magnetic Core Drilling Machine MAB100K
Description
BDS Maschinen – MAB100K
Technical specification
Compact, handy, powerful. The right magnetic core drilling machine, when low weight is the priority.
At just 9.9 kg, the MAB 100 K is the lightweight of the BDS range. The internal wiring ensures a high degree of safety during work. Equipped with KEYLESS quick-change drilling system.
- Quick-change drilling system
- Magnet indicator
- Permanent internal lubrication
| MAB 100 K | |
| Motor output | 1,050 W |
| Voltage | 230 V AC, 50 – 60 Hz |
| Stroke | 70 mm |
| Magnet dimensions | 80 x 160 x 41.5 mm |
| Weight | 9.9 kg |
| Quick-change drilling system | KEYLESS, 19 mm (3/4”) |
| Gear range | 460 rpm |
| Permanent internal lubrication | √ |
| MAB 100 230 V | |
| MAB 100 110/125 V | |
| Core drill |
| Max. Ø 32 mm |
| Cutting depth: |
| 30-35 mm |
Fitting your needs
PRODUCTS
The compact heavy-duty machine with more motor power and less weight.
Magnetic core drilling machine with two-speed oil bath gearbox. Ideal for the service and maintenance department thanks to just 16 kg. weight. With MT 3 Morse taper system and drilling capacity up to Ø 50 mm. Torsion-resistant design through single-piece gearbox housing with slide.
MABasic 850
WITH 1800 W SUITABLE FOR EXTREME TASKS
Full power magnetic drilling machine for demanding tasks. This machine will offer you an extremely powerful and reliable drilling solution with the BDS quality.
Ample performance with a 1,800 Watt motor. Thanks to the 255 mm stroke, larger parts can also be machined with this magnetic core drilling machine. The MABasic 850 magnetic CORE drilling machine is designed for core drills with a diameter of up to 75 mm and length up to 110 mm. This is an ideal machine drilling twist drill bits up to 31.75 mm diameter with MT3 Shank.
MAB 465
AFFORDABLE DRILLING & TAPPING MACHINE
Great power for a small price! The compact MAB 465 magnetic drilling tapping machine from the ProfiSTART series with electronic control and clockwise/ anticlockwise rotation.
A compact yet powerful model with an output of 1,150 W reversible motor ideal for drilling and tapping. Versatility for use in workshop and on the go with a transport weight of just 13 kg. For core drilling and thread cutting. With this new concept of machine BDS introduces a drilling as well as tapping machine an affordable low cost price range. The MAB 465 magnetic drilling tapping machine is equipped with grease gearbox, two speed, reversible motor which makes the machines economical for drilling and tapping operation. Made in Germany.
THE BESTSELLER AMONG PROFESSIONALS
The compact all-rounder. A wide range of possible applications and excellent performance make the MAB 485 one of the most popular machines among metal-working professionals.
For greater comfort and precision, there is the MAB 485 SB with a Swivel Base adjustment fixture. This makes the centering of the hole to be drilled easier and quicker.
