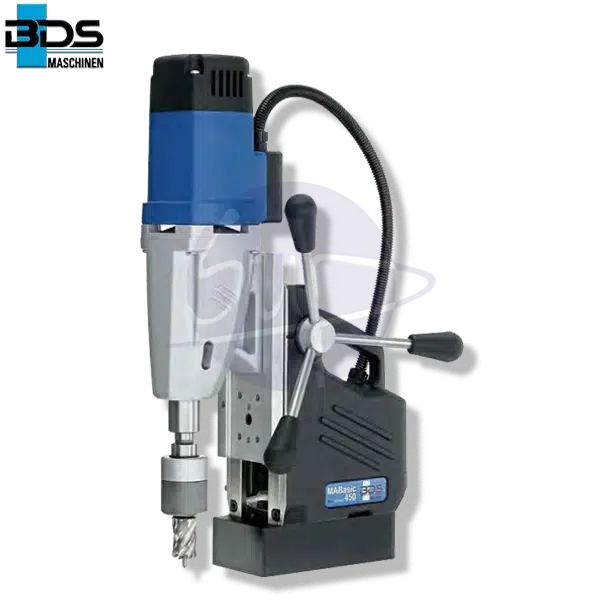

Magnetic Core Drilling Machine MABASIC 450
Description
BDS Maschinen – MABASIC 450
Technical specification
With an ample motor power of 1,150 W with a weight of just 13 kg, this is a portable and reliable workhorse in the workshop and on the assembly line. Drilling of diameters up to 40 mm / 50 mm with a cutting depth of 55 mm is possible.
- Switches are arranged on the back for safe and easy operation
- MT 2 Spindle taper
- MT 2 Industrial arbor
- Permanent internal lubrication
| MABasic 450 | |
| Motor output | 1,150 W |
| Voltage | 230 V AC, 50 – 60 Hz |
| Stroke | 160 mm |
| Magnet dimensions | 84 x 168 x 48 mm |
| Weight | 13 kg |
| Industrial arbor | MT 2,19 mm Weldon (3/4”) |
| Spindle taper | MT 2 |
| Gear 1 range | 250 rpm |
| Gear 2 range | 450 rpm |
| Permanent interna lubricant With integrated tank | √ |
| MABasic 450 230 V | |
| MABasic 450 110/125 V | |
Core drill | Twist drill |
HSS Ø 40 mm | Ø 18 mm |
| TCT Ø 50 mm | |
Cutting depth: 30-55 mm |
Fitting your needs
PRODUCTS
The compact heavy-duty machine with more motor power and less weight.
Magnetic core drilling machine with two-speed oil bath gearbox. Ideal for the service and maintenance department thanks to just 16 kg. weight. With MT 3 Morse taper system and drilling capacity up to Ø 50 mm. Torsion-resistant design through single-piece gearbox housing with slide.
MABasic 850
WITH 1800 W SUITABLE FOR EXTREME TASKS
Full power magnetic drilling machine for demanding tasks. This machine will offer you an extremely powerful and reliable drilling solution with the BDS quality.
Ample performance with a 1,800 Watt motor. Thanks to the 255 mm stroke, larger parts can also be machined with this magnetic core drilling machine. The MABasic 850 magnetic CORE drilling machine is designed for core drills with a diameter of up to 75 mm and length up to 110 mm. This is an ideal machine drilling twist drill bits up to 31.75 mm diameter with MT3 Shank.
MAB 465
AFFORDABLE DRILLING & TAPPING MACHINE
Great power for a small price! The compact MAB 465 magnetic drilling tapping machine from the ProfiSTART series with electronic control and clockwise/ anticlockwise rotation.
A compact yet powerful model with an output of 1,150 W reversible motor ideal for drilling and tapping. Versatility for use in workshop and on the go with a transport weight of just 13 kg. For core drilling and thread cutting. With this new concept of machine BDS introduces a drilling as well as tapping machine an affordable low cost price range. The MAB 465 magnetic drilling tapping machine is equipped with grease gearbox, two speed, reversible motor which makes the machines economical for drilling and tapping operation. Made in Germany.
THE BESTSELLER AMONG PROFESSIONALS
The compact all-rounder. A wide range of possible applications and excellent performance make the MAB 485 one of the most popular machines among metal-working professionals.
For greater comfort and precision, there is the MAB 485 SB with a Swivel Base adjustment fixture. This makes the centering of the hole to be drilled easier and quicker.
