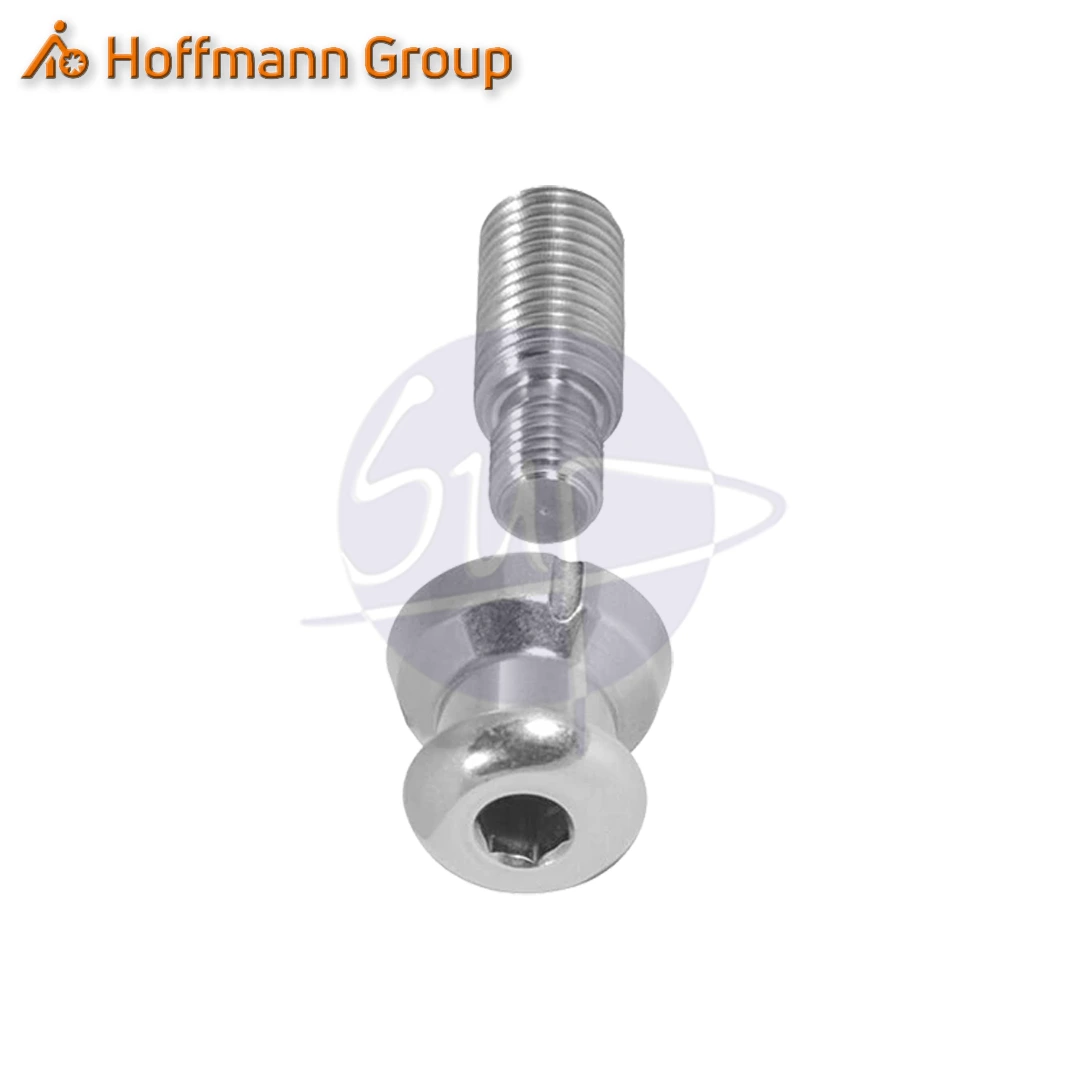

HOFFMANN 360025 – ZeroClamp Clamping Stud, 12 mm Ø, Internal M10 Thread, 90 mm Length
The HOFFMANN 360025 is a precision-engineered ZeroClamp clamping stud, specifically designed for the GARANT ZeroClamp zero-point clamping system. With a 12 mm centre diameter and an internal M10 thread, this 90 mm stud is optimized for quick insertion into clamping pots, enabling fast and precise workpiece securing on CNC tables, fixtures, or modular pallets.
Crafted to exacting specifications—including a k6 tolerance for tight fit and accuracy—it aligns with clamping pots of matching diameter, ensuring reliable positioning and minimal deviation. The stud is built from hardened steel for high load capacity and long-lasting performance within automated or repetitive industrial applications.
One of its notable strengths is the pneumatic clamping compatibility within the ZeroClamp system. Once inserted into the pot, it enables secure and repeatable clamping of workpieces without manual adjustment. This significantly reduces setup times and increases productivity in manufacturing environments.
The internal M10 thread also allows attachment of workpiece fixtures, blanks, or alignment accessories directly to the stud, adding modularity and versatility. This capability is critical when integrating custom or specialized tooling setups into your ZeroClamp workflow.
In industrial manufacturing, where precision and speed are paramount, the HOFFMANN 360025 clamping stud delivers both: it offers a stable, repeatable, and efficient clamping solution that supports automatic systems and improves machine uptime.
| Feature | Specification |
|---|---|
| Model | HOFFMANN 360025 |
| Series | GARANT ZeroClamp |
| Centre Ø | 12 mm (k6 tolerance) |
| Internal Thread | M10 |
| Secondary Thread | M8 (bottom) |
| Stud Length | 90 mm total length |
| Material | Hardened steel |
| Compatibility | Clamping pot Ø 90 mm |
| Function | ZeroClamp fixed-point workpiece clamping |
| Origin | Hoffmann Supply Chain GmbH, Germany |
