Maus Italia
Semi-Automatic Extraction

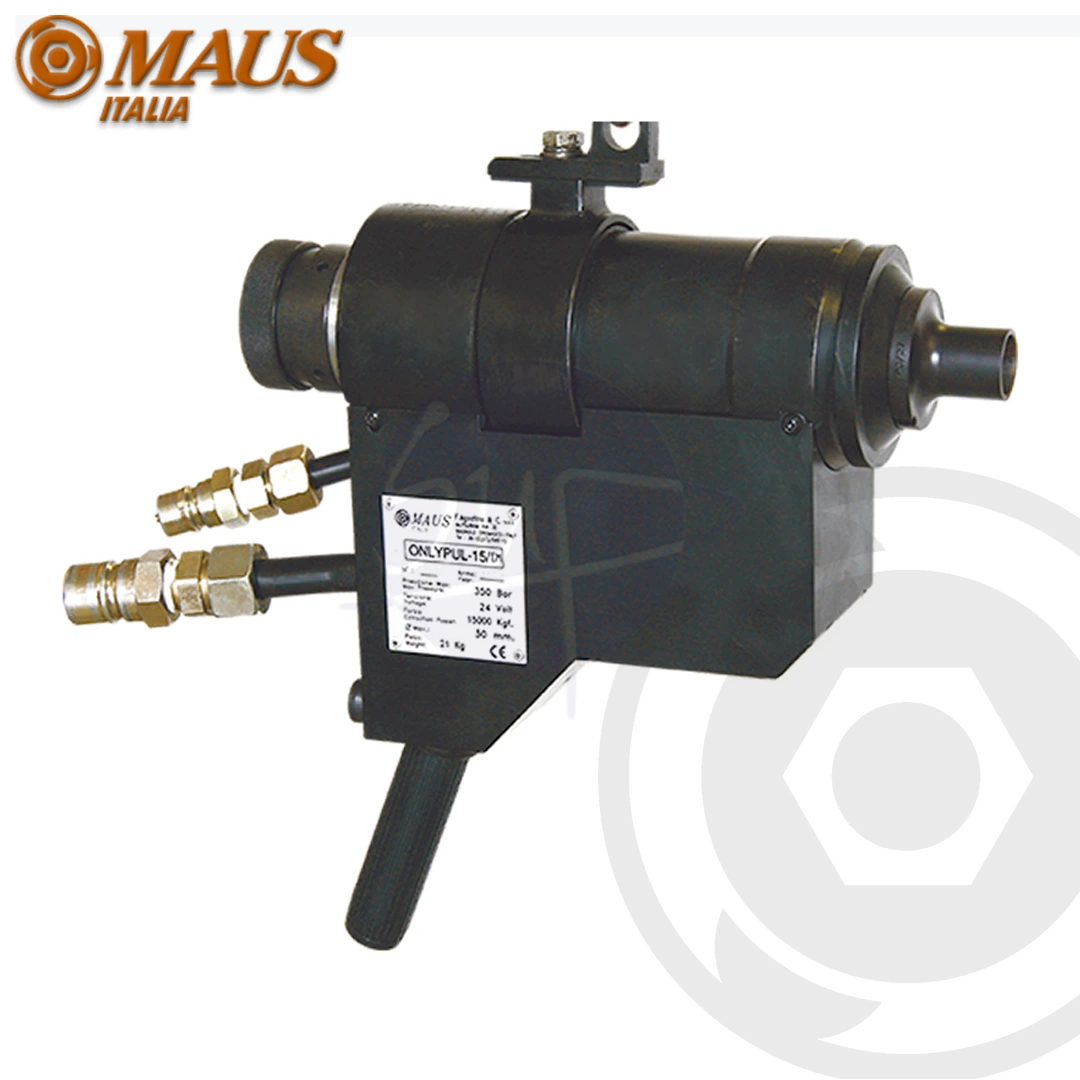

Maus Onlypul Hydraulic Tube Puller
Efficient, Compact Extraction for Small-Scale Maintenance
Reliable Semi-Automatic Pulling
The Maus Onlypul Series provides a highly efficient, semi-automatic solution for tube extraction where heavy-duty industrial systems are not required. By automating the continuous pull cycle, it eliminates the need for manual resets, dramatically improving productivity for service workshops and routine maintenance teams.
Key Operational Features
- • Semi-Auto Cycle: Continuous pulling increases speed and lowers fatigue.
- • Versatile Force: Available in 15, 30, 45, and 60 kN configurations.
- • Tubesheet Protection: Designed with smooth hydraulics to prevent hole scoring.
- • Complete Field Kit: Includes RC24 remote, RSR swivel ring, hoses, and spares.
Technical Specs
| Model | Force | Tube Ø Range |
|---|---|---|
| Onlypul 15 | 15 kN | 9.5–28.6 mm |
| Onlypul 30 | 30 kN | 9.5–42.4 mm |
| Onlypul 45 | 45 kN | 25.4–76.2 mm |
| Onlypul 60 | 60 kN | 50.8–101.6 mm |
Expert Insight: The inclusion of the RSR revolving ring and RC24 remote makes the Onlypul particularly effective in confined heat exchanger headers. It allows for safe, precise alignment and extraction without the operator needing to be in direct contact with the pulling mechanism.
