Maus Italia
High-Performance Hydraulic Unit

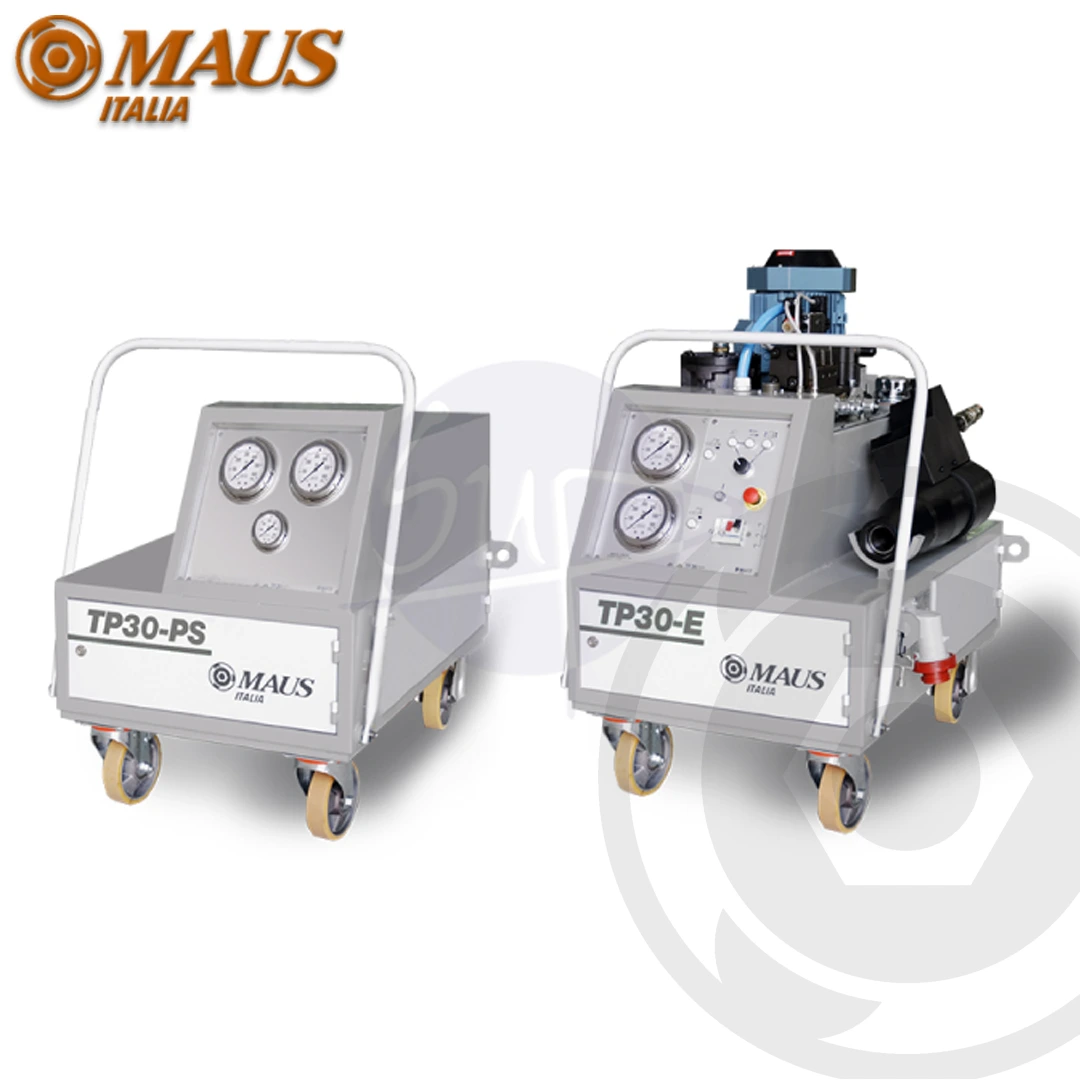

Maus TP30 Automatic Hydraulic Power Unit
Rapid, Reliable Power for Tube Extraction Systems
Superior Power for Demanding Maintenance
The Maus TP30 is a heavy-duty hydraulic power unit engineered to deliver high-flow performance for automatic and semi-automatic tube pulling. With a substantial 30 L/min flow rate and 350 bar pressure, it provides the speed and force required for large-scale heat exchanger maintenance, ensuring rapid cycle times and consistent results.
Key Operational Advantages
- • Automatic/Semi-Auto:
Seamless integration with Runpul and Onlypul series. - • High-Flow Efficiency:
30 L/min rate allows for rapid continuous tube extraction. - • Operator-Centric:
Integrated handle controls allow for real-time extraction management. - • Site Versatility:
Available in Electric (TP30-E) or Pneumatic (TP30-PS) versions.
Technical Data
Max Pressure
350 bar (5,075 psi)
Max Flow Rate
30 L/min
Power Options
Electric or Pneumatic
Compatibility
Runpul, Onlypul
Expert Insight: The TP30 is designed for high-density maintenance environments where floor space is at a premium. Its compact mobile form factor ensures that even in tight workshop aisles, you maintain the high-flow hydraulic capacity required to keep large-scale projects on schedule.
