Description

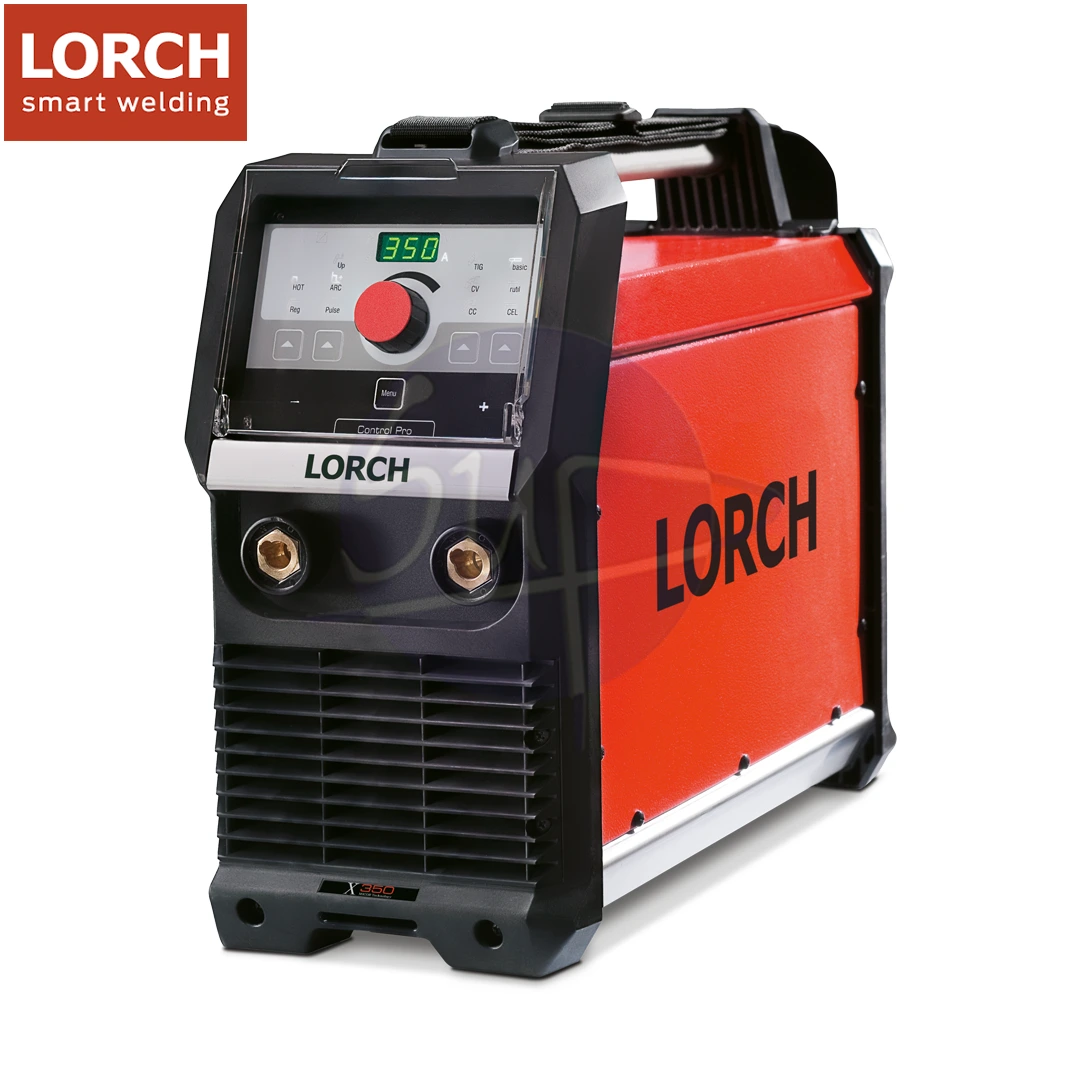

LORCH X 350 (X-Series)
Heavy-Duty MMA and TIG DC Welder
The LORCH X 350 combines exceptional power, rugged durability, and versatile functionality. Engineered to excel in the toughest industrial environments—including shipyards, construction sites, and field services in Batam—this compact workhorse delivers welding performance with maximum dependability.
⚙️ Core Features
-
- 350 A Max Output with robust duty cycle performance: 100% @ 230 A, 60% @ 280 A, 35% @ 350 A
- MicorBoost™ Technology ensures powerful, consistent arcs—even with long cables up to 200 m and fluctuating voltage
- Electrode Compatibility: 1.5 – 8.0 mm for basic/rutile/special; supports CEL electrodes up to 6 mm
- ContacTIG Function allows TIG DC welding capability in addition to MMA
- Advanced Arc Features: HotStart, Anti-Stick, Arc-Force for superior control
- MicorUp Vertical Seam Welding: Seamless root TIG welding with basic electrodes
- Gouging & CC/CV MIG Compatibility: Handles gouging and wire-feeder interface
- Rugged Build: Drop-tested to 60 cm, IP34S weather-proof rating, weighs just 18.6 kg
- User-Friendly Operation: “3‑steps to weld” BasicPlus or ControlPro interface with electrode presets
| Feature | Specification |
|---|---|
| Welding Current | 10 – 350 A |
| Duty Cycle @ 40 °C | 100% @ 230 A; 60% @ 280 A; 35% @ 350 A |
| Electrode Diameter | 1.5–8.0 mm (CEL up to 6.0 mm) |
| Open-Circuit Voltage | 73 – 86 V |
| Voltage Range | 10.4 – 25 V |
| Power Input | 3~ 400 V, 25 A fuse, ±25% / −40% tolerance |
| Duty Cycle (TIG DC) | 100% @ 250 A; 60% @ 300 A |
| Protection & Insulation | IP34S, EN 60974‑1, CE, Class F insulation |
| Dimensions (L×W×H) | 515 × 185 × 400 mm |
| Weight | 18.6 kg (BasicPlus); 20.2 kg (PST variant) |
🏭 Ideal for Batam’s Industries
-
- Shipyards & Offshore Repair
- Structural Steel & Pressure Vessel Welding
- Field Maintenance with Generator Power
- Vertical Seam TIG Welding
- Construction & Infrastructure Projects
Built rugged for rough use, yet light enough for mobile applications
