Fits your needs
Blackbull G 630
Description
Technical specification

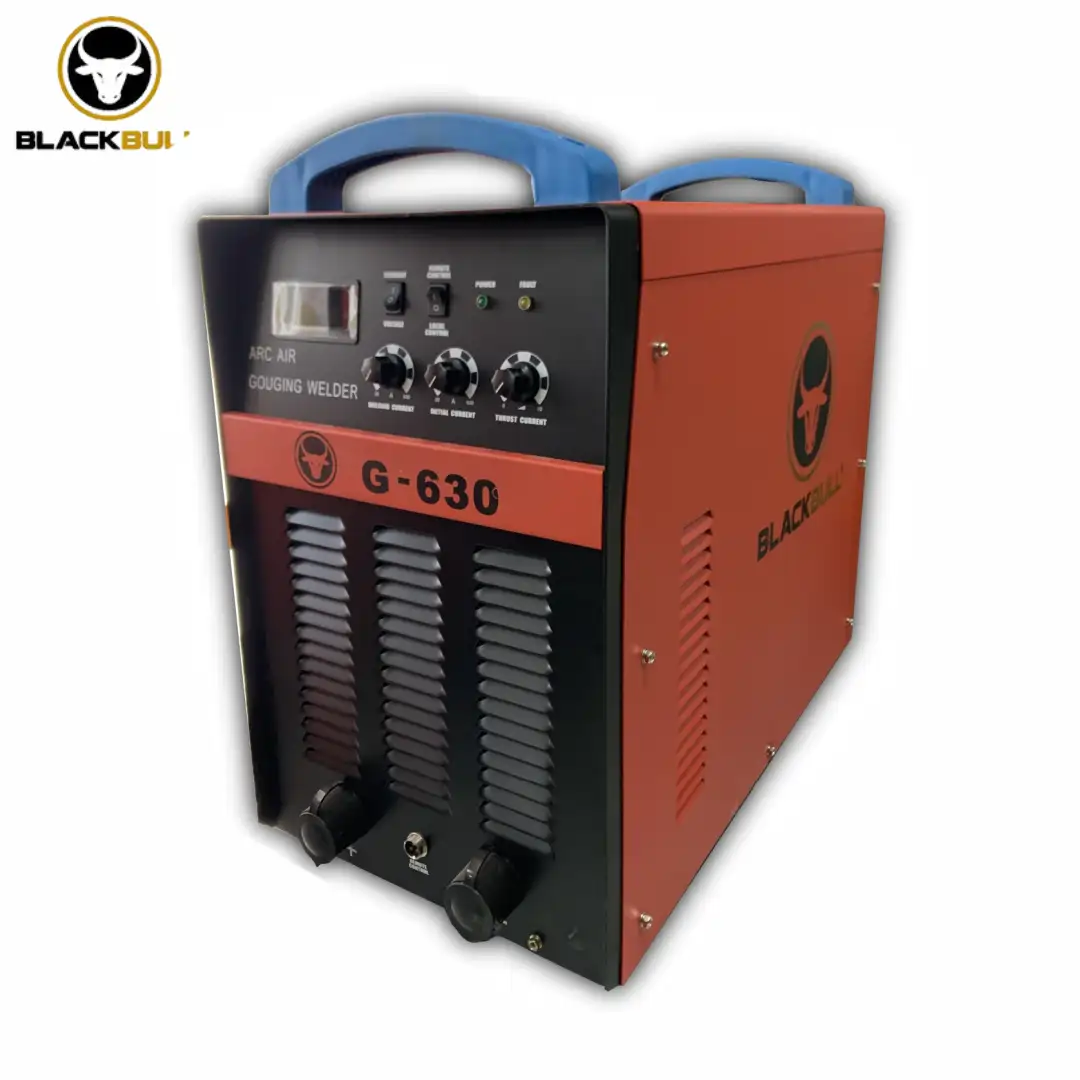

Blackbull G 630
DC MANUAL ARC WELDING MACHINE GAUGING
MAIN TECHNICAL PARAMETER
Model: G-630
Input voltage / frequency: three phase 3G 380V ±10% 50Hz
Rated input current (A): 52
Rated input power (KVA): 34
Rated no-load voltage (V): 80
Adjustment range of output current (A): 30–630
Striking arc current range (A): 0–10
Thrust current range (A): 0–10
Specification of suitable carbon rod: 6–10
Rated duty cycle (%): 60%
Efficiency: 0.85
Power factor: 0.9
Insulation grade: F
Shell protection grade: IP21S
Cooling method: Air cooling
Dimension (L x W x H): 680 × 340 × 570 mm
Net weight (Kg): 52.5
EQUIPMENT FEATURES
-
- Strong power grid automatic compensation capacity, widely application areas.
- Digital circuit control, stable and reliable.
- Excellent dynamic characteristics curve, easy arc ignition, low-spatter welding, low noise.
- Small, light and easy to be moved.
- Complete automatic self-protection function.
- With wireless remote-control device, easy current adjustment, especially suitable for long distance and high-altitude operation.
