Fits your needs

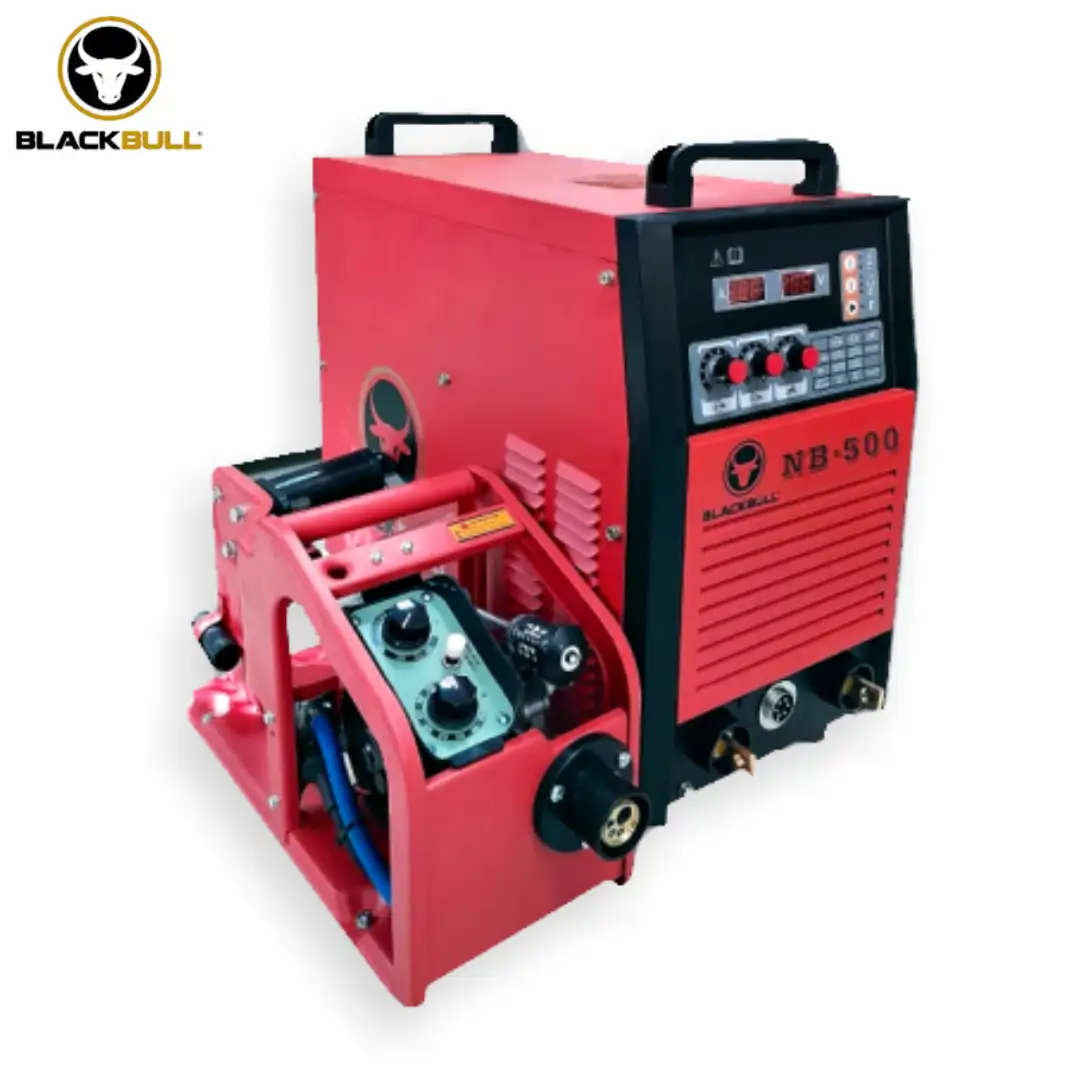

Blackbull NB-500
Description
Technical specification
Blackbull NB-500
| Parameter | Value |
|---|---|
| Input voltage/frequency | Three phase 3 Ø 400V ± 10% 50Hz |
| Rated input current (A) | 41 |
| Rated input power (KVA) | 27 |
| Rated no-load voltage (V) | 71 |
| Rated output voltage (V) | 39 |
| Adjustment range of output voltage (V) | 16–45 |
| Adjustment range of output current (A) | 50–500 |
| Wire feeding speed range (M/min) | 2–25 |
| Pre flow time (S) | 0.1–2 |
| Lag flow time (S) | 0.1–2 |
| Burn-back time (S) | 0.1–2 |
| Slow wire feeding speed voltage (V) | 1–10 |
| Wire diameter (mm) | Ø1.0 / Ø1.2 / Ø1.6 |
| Wire feed type | Push Wire |
| Welding torch cooling method | Gas Cooling |
| Rated duty cycle (%) | 60% |
| Efficiency | 0.85 |
| Power factor | 0.9 |
| Insulation grade | F |
| Shell protection grade | IP21S |
| Cooling method | Air Cooling |
| Dimensions (L x W x H) mm | 650 x 320 x 545 |
| Net weight (Kg) | 33.5 |
Equipment Features
-
- Inverter IGBT technology, reliable and efficient.
- High switching frequency, light weight and portable.
- Energy saving, and strong ability in adapting wide power grid.
- Easy arc ignition, low spatter and high deposition rate.
- Excellent weld, less thermal deformation, especially for thin plate welding.
- MMA function is optional for multipurpose.
