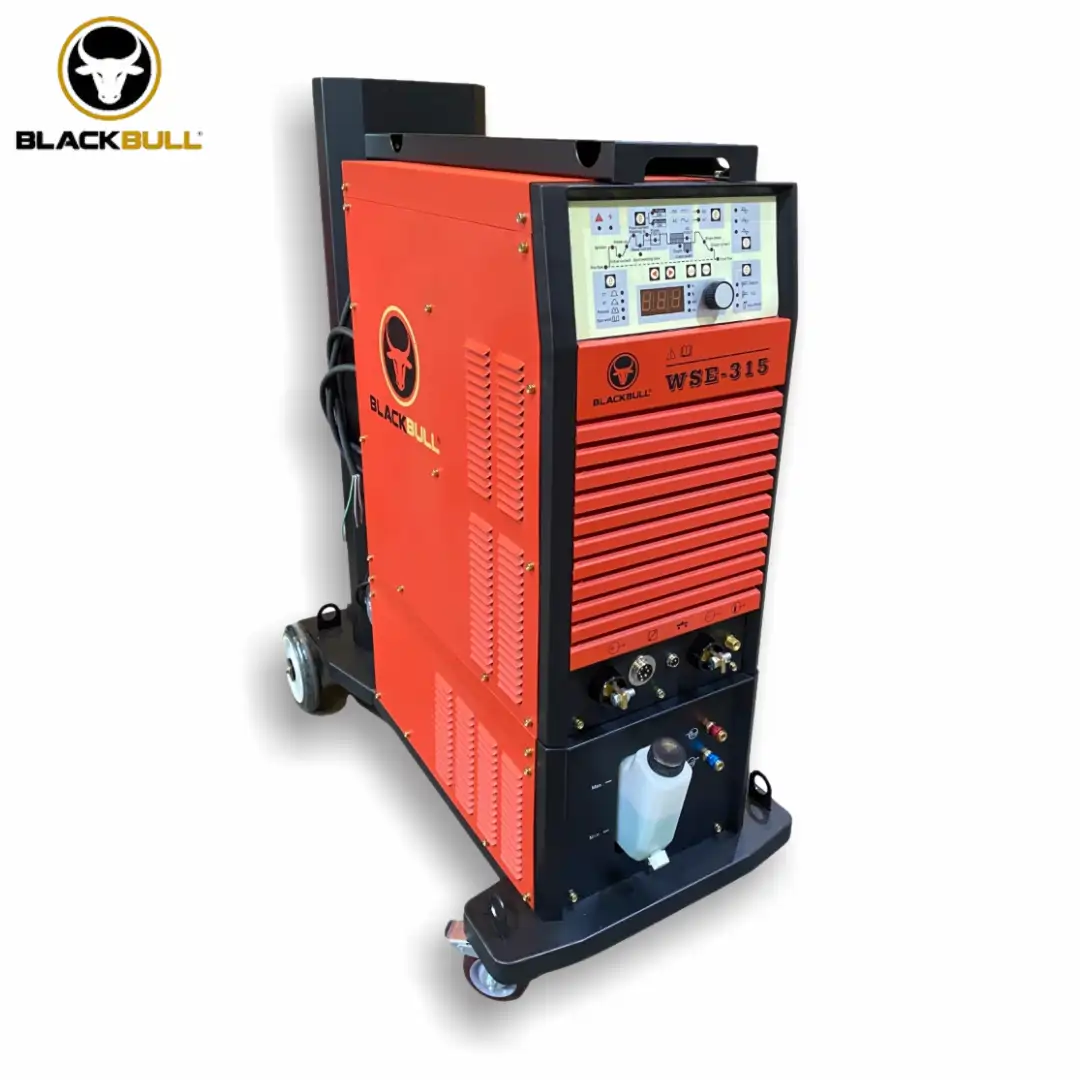

Blackbull WSE315D
Description
Technical specification
Inverter AC/DC Argon-Arc Welding Machine

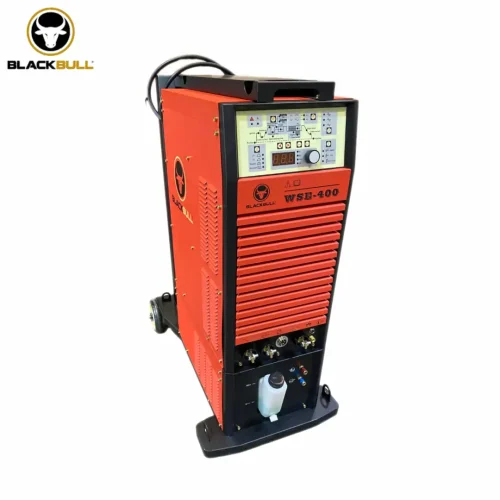

BLACKBULL WSE-315D/400D
| Model | WSE-315D | WSE-400D |
|---|---|---|
| Input voltage/frequency Three phase | 3Φ 380V±10% 50Hz | |
| Rated input current (A) | 17 | 29 |
| Rated input power (KVA) | 11 | 19 |
| Rated no-load voltage (V) | 78 | 68 |
| Adjustment range of output current (A) | 5–315 | 10–400 |
| Base current range (A) | 5–315 | 10–400 |
| Hot striking arc current range (A) | 5–315 | 10–400 |
| Arc striking current range (A) | 5–315 | 10–400 |
| Crater arc current range (A) | 5–315 | 10–400 |
| Duty ratio (%) | 10–90 | 5–95 |
| AC width (%) | 10–90 | 10–50 |
| Cleanup depth (%) | -50~+50% | -50~+50% |
| AC frequency (Hz) | 20–200 | 40–100 |
| Slow rise time (S) | 0~10 | 0.1~20 |
| Slow down time (S) | 0~10 | 0.1~20 |
| Pre flow time (S) | 0.1~10 | 0.1~20 |
| Lag flow time (S) | 0.1~10 | 0.1~20 |
| Pulse frequency (Hz) | 1–20 | 1–20 |
| Storage capabilities | 9 channels storage and dispatch | |
| TIG – Working way | 2T 4T Repeatedly / spot welding | |
| TIG-Striking arc way | High frequency / Contact striking arc | |
| Rated duty cycle (%) | 60% | 60% |
| Efficiency | 0.85 | 0.85 |
| Power factor | 0.9 | 0.9 |
| Insulation grade | F | F |
| Shell protection grade | IP21S | IP21S |
| Cooling method | Air cooling | |
| Dimension L×W×H (mm) | 635×340×770 | 685×430×885 |
| Net weight (Kg) | 61.5 | 79 |
Equipment Features
-
- IGBT inverting technology is adopted.
- Full digital control circuit is adopted to make its performance more stable and reliable.
- Have the communication output wave form selection function and the spot welding function.
- It has AC and DC pulse function, which can realize single side welding.
- It has the function of mixing TIG with AC DC, the welding seam is beautiful, the fuse is deep and the electrode loss is small.
- The new digital panel can adjust the functions accurately.
- It has many kinds of protection functions such as overheat and overheat.
