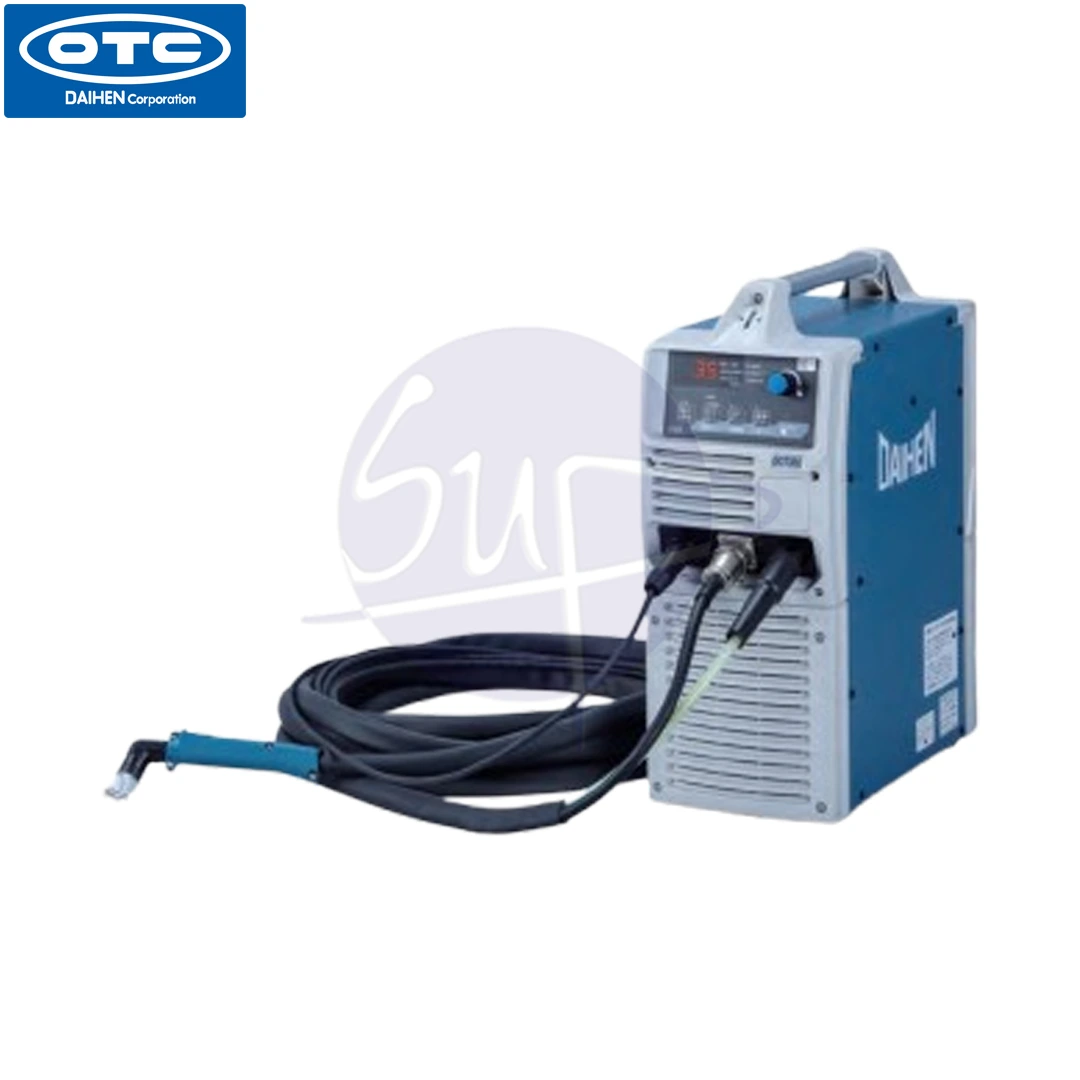

OTC DCT-60: High-Powered Digital Air Plasma Cutting Machine for Industrial Applications
The OTC DCT-60 by Daihen is a high-performance digital air plasma cutter engineered for professional-grade metal fabrication and maintenance operations. With its 60A cutting capacity and portable design, it delivers consistent and precise results on a wide range of ferrous and non-ferrous metals.
Key Features of the DCT-60 Plasma Cutter
-
-
60 Amp Output Power: Capable of cutting mild steel up to 20mm thick and stainless steel up to 10mm with clean, stable arcs.
-
Digital Operation Panel: Easy-to-read display and knob selector for precise setting adjustments.
-
Lightweight & Portable: Weighs only 19 kg, suitable for on-site jobs without the need for a large air supply system.
-
Built-in Safety Protections: Overload, overvoltage, and air pressure alerts for enhanced operator safety.
-
Air Cooling System: Efficient heat dissipation during long-duration use.
-
-
Input Power: 3-phase 200V / 220V
-
Output Current: 20–60 A
-
Cutting Thickness:
-
Mild Steel: up to 20mm
-
Stainless Steel: up to 10mm
-
Aluminum: up to 8mm
-
-
No-load Voltage: Approx. 320 V
-
Duty Cycle: 60% at 60A
-
Weight: 19 kg
-
Dimensions: 498 x 203 x 370 mm
Typical Applications
-
-
Metal structure fabrication
-
Shipbuilding and repair
-
Machinery maintenance
-
Automotive workshops
-
On-site installation cutting
-
Why Choose OTC DCT-60?
This plasma cutter provides an excellent balance between power and portability, with enough current to handle thick plates and refined control for more delicate work. It’s ideal for operations requiring consistent mobility without compromising cutting quality.
