Fits your needs
BlackBull ZX7-500×4
Description
Technical specification
BLACKBULL ZX7 – 500 (MMA)
Four station welding machine
Four welders welding simultaneously without affecting each other, adjust the current separately
Characteristics
-
- Imported IGBT mono tube, four stations: one machine for four people, independent current regulation.
- Single workstation for 5.0mm welding rod, long welding, not afraid of voltage fluctuations, capable of welding both high and low voltages.
- J422/J427/J506/J507 electrodes can all be used for welding.
- Adapt to construction sites, harsh outdoor environments, and welding in high and low temperature weather.
Technical parameter
| Model | ZX7-500X4 | |
|---|---|---|
| Function | MMA | |
| Input Voltage (V) | 3P/380V ±10% | |
| Maximum Input Current (A) | 96 | |
| Maximum Input Power (KVA) | 48 | |
| Rated Output Current (A) | 500 Each Station | |
| Rated Output Voltage (V) | 32 | |
| Duty Cycle (%) | 60 | |
| No-load Voltage (V) | 81 | |
| Power Factor (p) | >0.93 | |
| Efficiency (%) | >0.85 | |
| Wire Diameter (MM) | 1–6 | |
| Cooling Method | Air Cooling | |
| Net weight (KG) | 82.5 | |
| Dimension (MM) | 500×640×977 |
Discover more
PRODUCTS

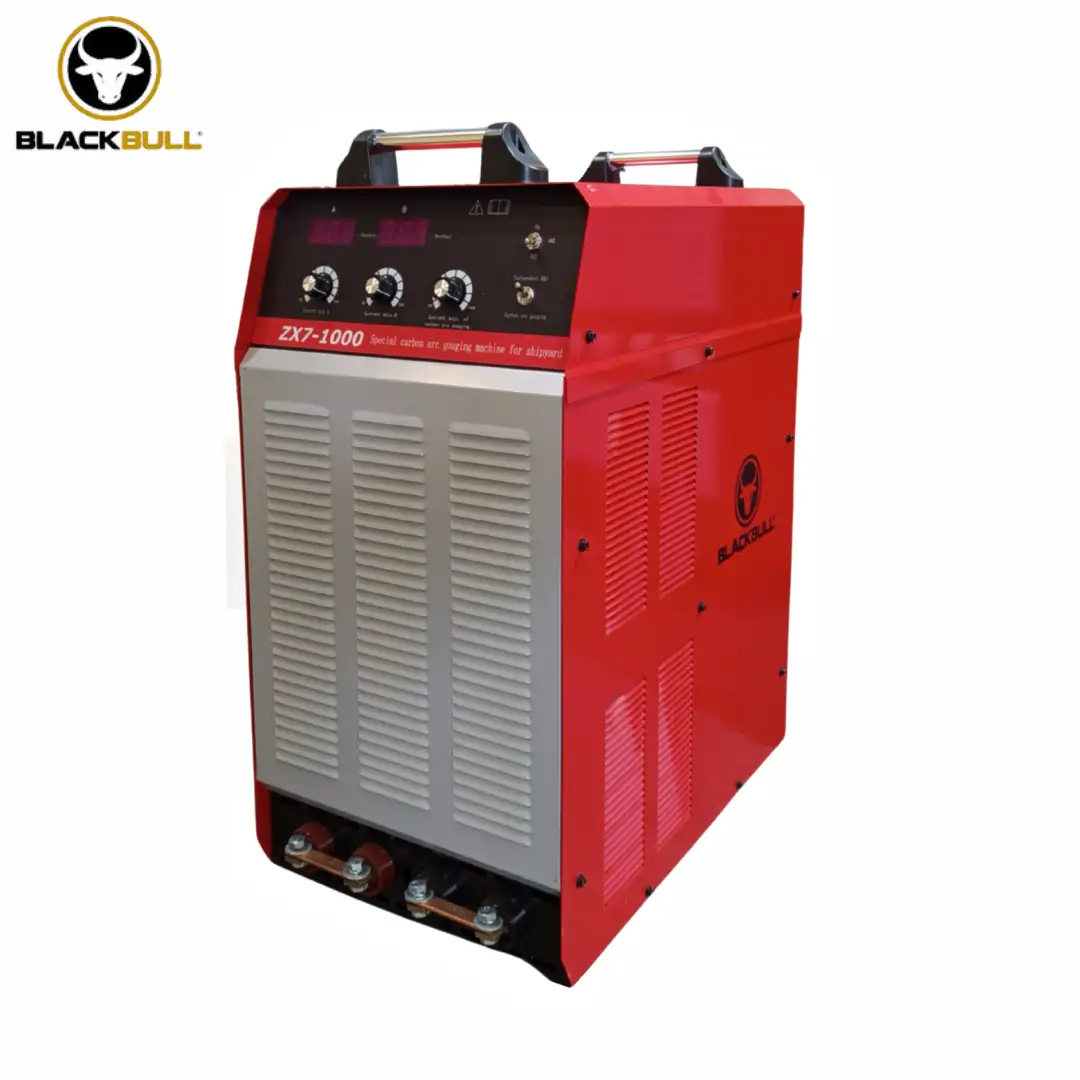

BLACKBULL ZX7-1000 Dual station industrial welding machine or carbon gouging machine Dual station/MMA/Carbon gouging Imported high-power dual
