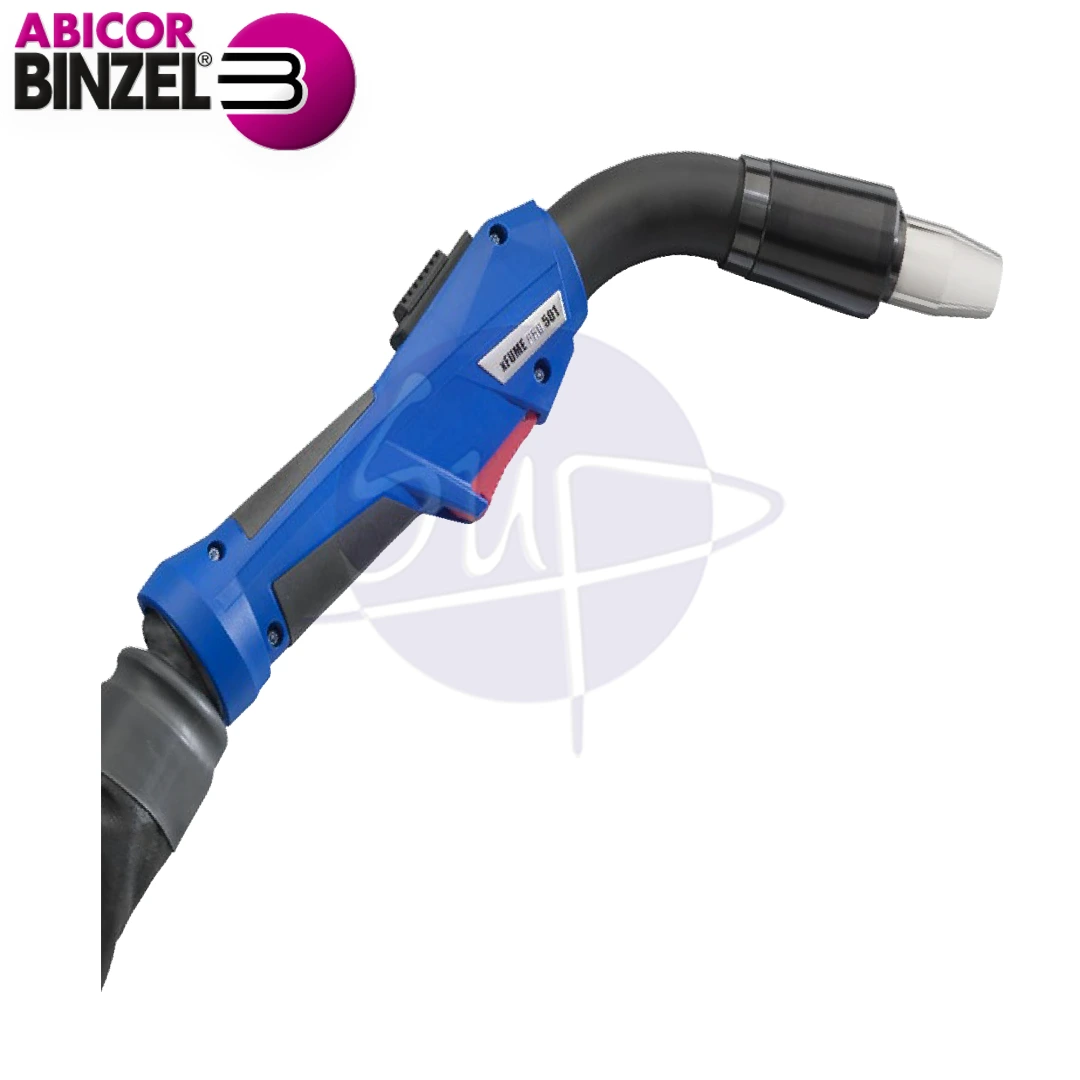

ABICOR BINZEL xFUME® PRO 501 HD
Description
Technical specification
The ABICOR BINZEL xFUME® PRO 501 HD (Heavy Duty) is the premium water-cooled fume-extraction torch engineered for high-temperature, high-amperage MIG/MAG welding. As the top-tier model in the xFUME® PRO HD family, it is purpose-built for rigorous industrial environments, delivering up to 500 A with CO₂ and 450 A with M21 mixed gas at a 100 % duty cycle.
Built for Heavy-Duty Performance
Featuring a steel extraction nozzle, reinforced HD gas nozzle, upgraded power cable, high-dirt trigger seal, durable ball-joint, and improved bend protection, the PRO 501 HD is highly resistant to heat, impacts, and wear typical in structural and shipyard welding.
Superior Fume Extraction
The water-cooled design ensures internal stability, while the frontend—comprising a short nozzle, 50° neck, and tapered shroud—maintains excellent shielding gas coverage while enabling up to 99 % fume capture when paired with units like xFUME ADVANCED, FES‑200 W3, and FEC W3.
Applications
This torch is ideal for continuous, heavy-duty welding on thick sections, delivering robustness and compliance for fabrication, shipbuilding, oil & gas, and offshore industries.
Why Choose xFUME PRO 501 HD?
-
- High amperage & full-duty cycle—continuous 500 A output (CO₂) with 100 % uptime
- Extreme durability—reinforced front-end and components for harsh environments
- Optimized ergonomics—handles like a standard MIG torch, minimizing fatigue
- Maximum fume control—source extraction, maintains gas integrity, W3-compliant
Incorporating the xFUME® PRO 501 HD enhances both clean air standards and operational output, delivering uninterrupted welding performance without sacrificing safety or visibility. Built for the toughest welding demands, this torch delivers professional-level results with every weld.
| Feature | Specification |
|---|---|
| Cooling | Water-cooled |
| Max Amperage (CO₂) | 500 A |
| Max Amperage (Mixed M21) | 450 A |
| Duty Cycle | 100 % |
| Wire Diameter | 1.0–1.6 mm |
| Extraction Nozzle Material | Steel HD nozzle resistant to heat and wear |
| Gas Nozzle | HD-design for high-temperature durability |
| Power Cable | Reinforced for tensile and thermal load |
| Trigger Seal | High-dirt, durable seal for tough conditions |
| Ball Joint & Bend Protection | Optimized for long-term use in heavy-duty welding |
| Hose Connection | Ø 28 mm high-vacuum compatible with most systems |
| Vacuum Compatibility | xFUME ADVANCED, FES‑200 W3, FEC W3 – achieves 90–99 % fume capture |
| Certification | Conforms to EN 60974‑7, ISO 21904 W3 with compatible systems |
