ABICOR BINZEL xFUME® TIG
Description
Technical specification
Clean TIG Welding with Built-In Fume Extraction

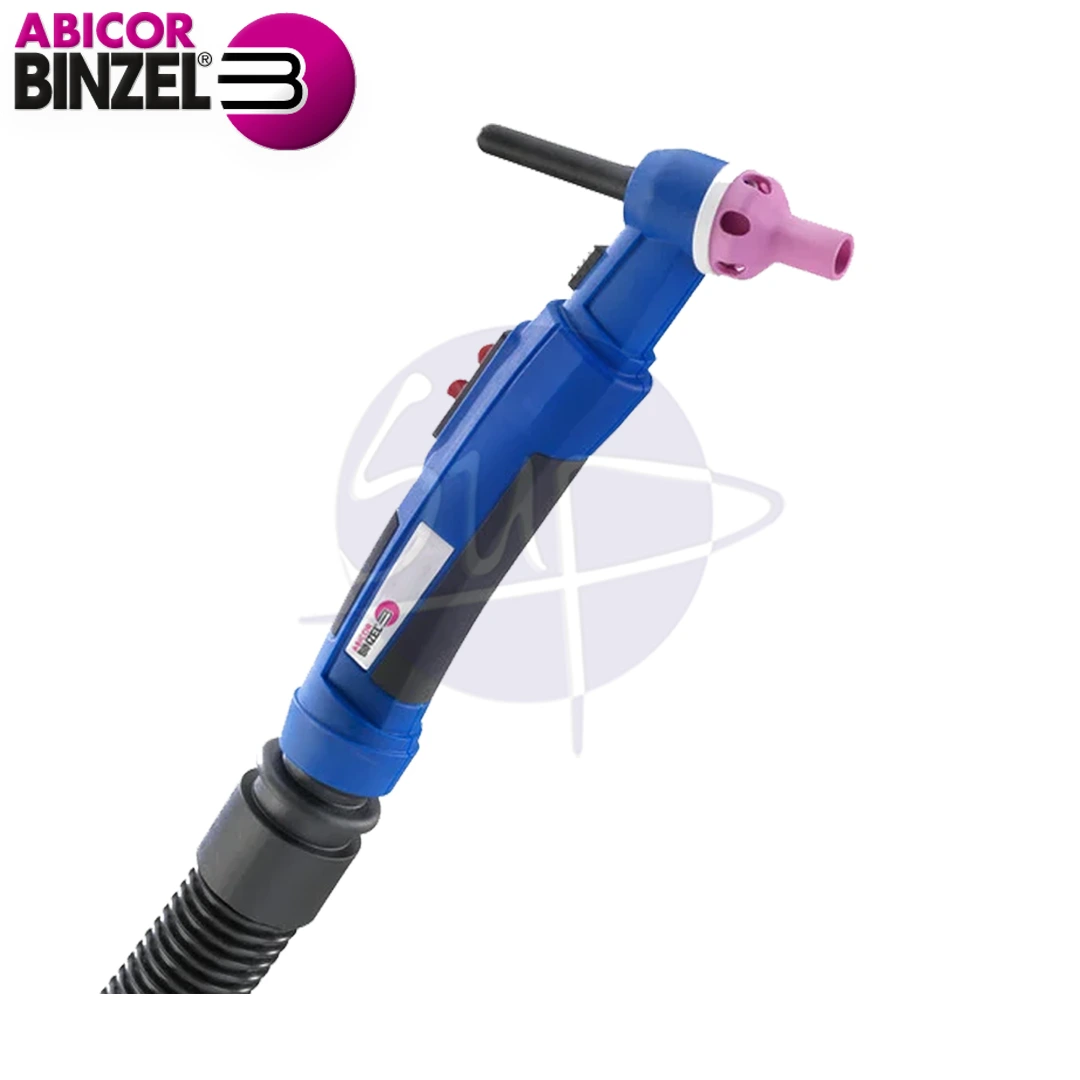

The ABICOR BINZEL xFUME® TIG
torch is purpose-built for TIG welding applications where even minimal visible smoke masks dangerous invisible particles. Whether you’re welding stainless steel, aluminum, or high-alloy materials, this innovative torch protects welders by capturing fumes directly at the arc.
ABICOR BINZEL offers both gas-cooled and water-cooled versions:
Key Specifications:
-
- xFUME® TIG 150 (gas-cooled): up to 150 A DC or 105 A AC, 35% duty cycle
- xFUME® TIG 260 W (liquid-cooled): up to 260 A DC or 185 A AC, 100% duty cycle
- xFUME® TIG 300 W (liquid-cooled): up to 300 A DC or 210 A AC, 100% duty cycle
- Electrode Ø: 1.0–2.4 mm (TIG 150), 1.0–3.2 mm (liquid models)
- Extraction Nozzle Flow: ~14.8 m³/h
- Connector: Ø28.9 mm (air-cooled), Ø23.7–26.7 mm (liquid-cooled)
A patented combined ceramic protection and extraction nozzle ensures arc visibility and shielding gas stability, while the proven ABITIG® wear part system simplifies maintenance and parts logistics. The torch seamlessly integrates with high-vacuum mobile extraction units such as the FES-200 W3 and FEC W3, as well as the xFUME ADVANCED, allowing captured fumes to be filtered (W3-class) and clean air returned safely to the workplace.
By choosing xFUME® TIG, welders benefit from reliable ergonomics, high-efficiency fume removal, and full compliance with occupational safety standards (TRGS 528, DIN EN ISO 15012‑1). Whether in aerospace, automotive, or precision fabrication, it’s the solution for clean, precise, and safer TIG welding.
| Feature | Specification |
|---|---|
| Cooling | Gas-cooled (TIG 150) / Liquid-cooled (TIG 260 W, TIG 300 W) |
| Max Amperage (DC) | 150 A / 260 A / 300 A |
| Max Amperage (AC) | 105 A / 185 A / 210 A |
| Duty Cycle | 35% / 100% / 100% |
| Electrode Ø | 1.0–2.4 mm (gas) / 1.0–3.2 mm (liquid) |
| Extraction Flow | ~14.8 m³/h |
| Connector Diameter | 28.9 mm / 23.7–26.7 mm |
| Nozzle | Patent ceramic extraction + splash shield for arc visibility |
| Wear Parts | ABITIG® one-piece holder and sleeve for maintenance ease |
| Ergonomics | Slim front-end, lightweight torch for precise TIG work |
| Extraction Unit Compatibility | FES‑200 W3, FEC W3, xFUME ADVANCED (W3 filter class) |
| Safety Compliance | TRGS 528, DIN EN ISO 15012‑1, W3 filtration |
| Applications | Stainless steel, aluminum, high-alloy TIG welding requiring arc cleanliness |
