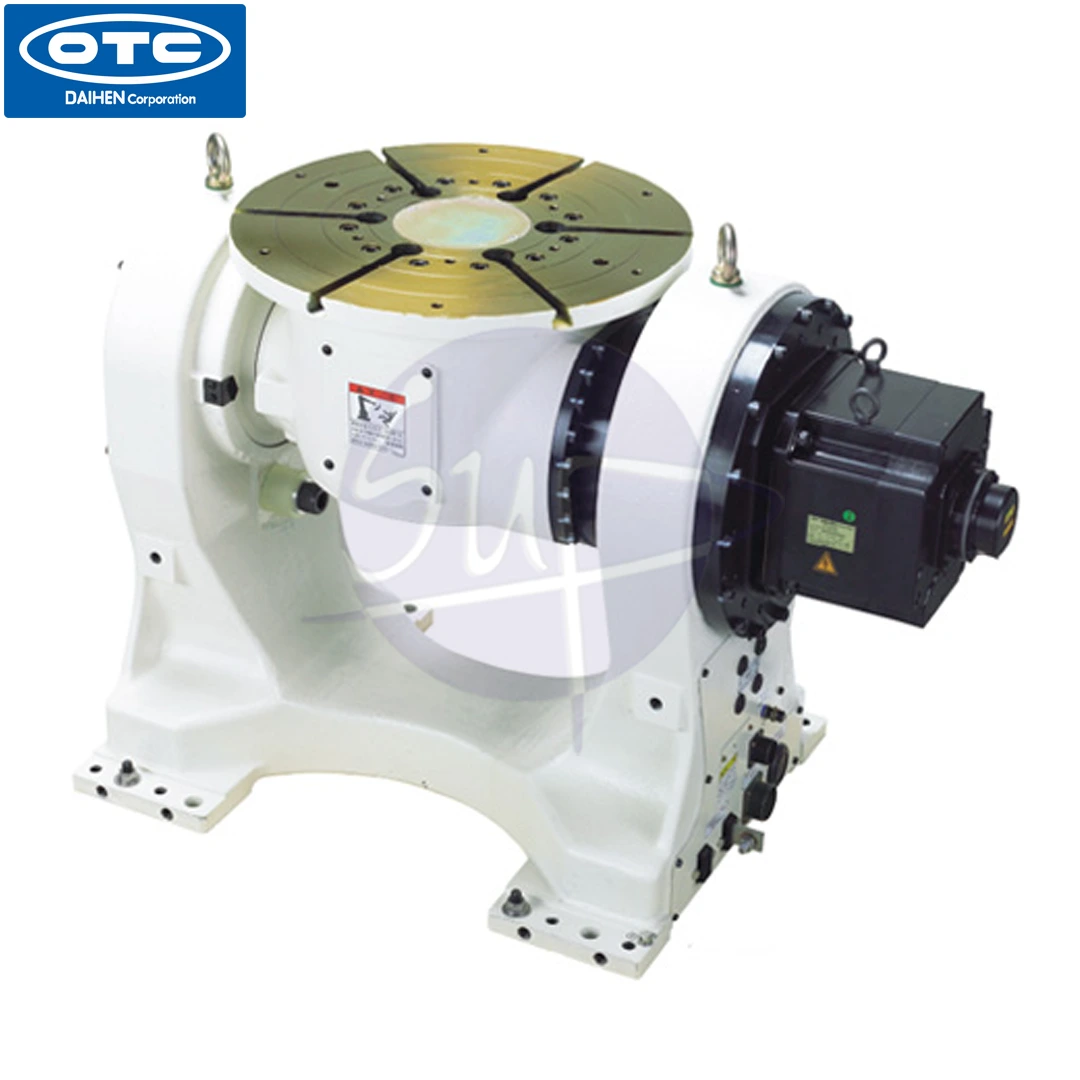

OTC 2PF1000 – Maximum Payload, Maximum Precision
The OTC 2PF1000 is a powerful 2-axis positioner engineered for heavy-duty welding automation. With an impressive 1,000 kg payload capacity, it provides unmatched support for large, complex workpieces while maintaining exceptional positioning accuracy. This model is ideal for industries requiring high structural integrity and consistent weld results.
Built for Large-Scale Fabrication
The 2PF1000 ensures controlled tilting and rotation for bulky parts, enabling robots to reach every joint with ease. Its rugged build and smooth motion system enhance process reliability in high-volume, heavy-industrial environments.
Seamless Integration with Robotic Welding Systems
Designed to complement OTC Daihen robotic systems, the 2PF1000 improves ergonomics, reduces repositioning downtime, and increases productivity across demanding welding operations.
Key Features:
-
- Dual-axis movement for advanced positioning control
- Heavy-duty 1,000 kg payload capacity
- Stable and precise motion for large components
- Optimized for robotic welding cells
- Reliable performance under tough industrial conditions
| Specification | Detail |
|---|---|
| Model | OTC 2PF1000 |
| Payload Capacity | 1,000 kg |
| Rotation Speed | Up to 100°/s |
| Tilt Angle | ±90° |
| Repeatability | ±0.1 mm |
| Applications | Welding of extra-large or heavy parts |
| Integration | Compatible with OTC robotic systems |
