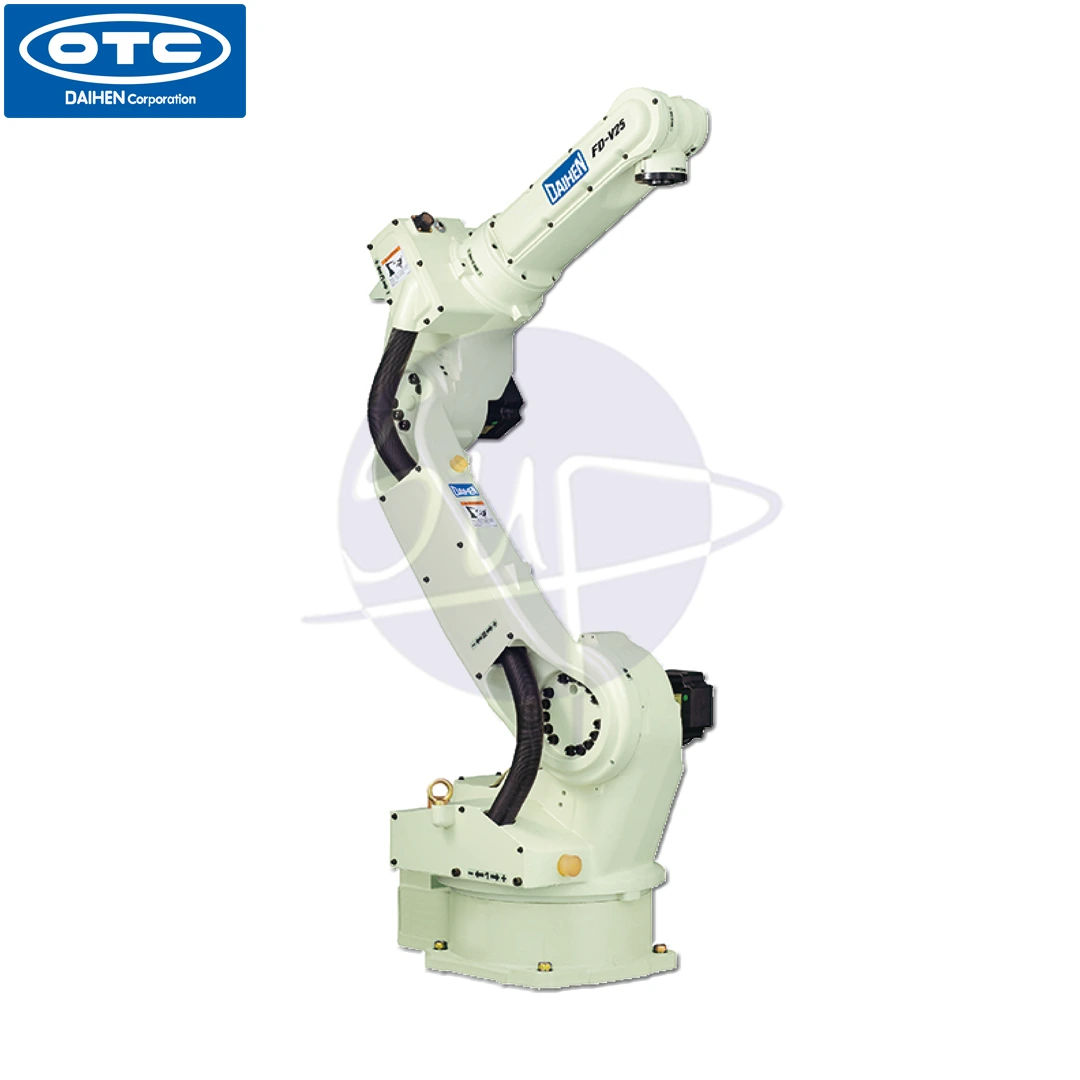

OTC FD‑V25 (S2) – Medium‑Payload 6‑Axis Arc Welding & Handling Robot
The OTC FD-V25 (S2) is a high-performance 6-axis arc welding and material handling robot engineered by OTC Daihen for demanding industrial workflows. Offering a 25 kg payload and 1,710 mm reach, this medium-duty model balances power with efficiency.
Its S2 series upgrades include a slimmer arm design—30% smaller footprint—and increased axis speed that slashes cycle time between welds and pick‑and‑place movements . Suited for integration with OTC Daihen’s welding power sources, the robot supports seamless digital communication and reliable performance.
The through-arm cable routing ensures smooth torch reach and wire feeding, while the built-in vibration suppression offers consistent motion stability even under high-speed operation. mechanical shock sensor adds protection against collisions.
Installed on floors, walls, or ceilings, the FD‑V25 (S2) exhibits versatile deployment across production lines—handling weld beads, material transfers, trimming tasks, and more. Its ±0.04 mm repeatability maintains precise workpiece location and global quality records.
Key specs include 241 kg weight and an upper-arm load capacity of 10 kg, supporting varied end-effectors or torches. With an operating temperature from 0–45 °C and IP-level protections, it can perform in typical industrial conditions.
In brief, the OTC FD‑V25 (S2) excels in environments that demand robust welding throughput, compact layout, and automation readiness. It’s a strong fit for aerospace, automotive, shipbuilding, fabrication, and general industrial automation.
| Feature | Specification |
|---|---|
| Model | OTC FD‑V25 (S2) |
| Axes | 6 |
| Payload | 25 kg |
| Reach (P‑Point) | 1,710 mm |
| Repeatability | ± 0.04 mm (ISO 9283) |
| Weight | 241 kg |
| Upper Arm Load | 10 kg |
| Protection | IP54 (base/lower arm) |
| Mounting | Floor, wall, ceiling |
| Ambient Conditions | 0–45 °C, 20–80 % RH |
| Features | Thin-arm, high-speed, through-arm cables, shock sensor |
